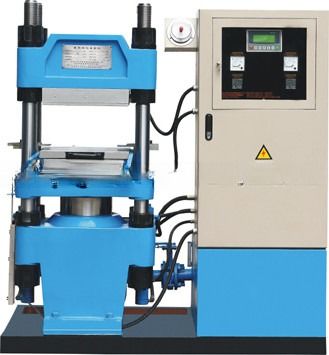

Platen Vulcanizing Machine/Plate Curing Machine/Rubber Press Machine

Large Image : Platen Vulcanizing Machine/Plate Curing Machine/Rubber Press Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Geekung
Certification:	ISO CE

Payment & Shipping Terms:

Price:	$1,000.00 - $50,000.00/sets
Packaging Details:	wooden case or plastic film packed loaded in a whole container
Payment Terms:	T/T
Supply Ability:	40 Set/Sets per Quarter

Contact Now

Platen Vulcanizing Machine/Plate Curing Machine/Rubber Press Machine

Description

Condition:	New	Voltage:	220V/380V/440V
Warranty:	1 Year	After-sales Service Provided:	Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas
Port:	Nanjing

Product Description

Rubber Platen Vulcanizing Machine/Plate Curing Machine/Rubber Press Machine.

Specification

Items	JC-XLB63T	JC-XLB100T	JC-XLB150T	JC-XLB200T	JC-XLB250T	JC-XLB300T	JC-XLB350T	JC-XLB500T
Max.system pressure	21Mpa	21Mpa	21Mpa	21Mpa	21Mpa	21Mpa	21Mpa	21Mpa
Clamping stroke(ton)	250mm	250mm	250mm	300mm	300mm	300mm	300mm	300mm
Rapid Clamping speed	≥60mm/s	≥60mm/s	≥60mm/s	≥60mm/s	≥60mm/s	≥50mm/s	≥50mm/s	≥50mm/s
Heating plate size (mm)	380x380 400x400	400x400 450x450 500x500	500x500	510x540 600x550	650x550 610x570	600x600 700x700	700x700	800x800 1000x850
Max.opening distance	350mm	350mm	350mm	350mm	350mm	350mm	350mm	350mm
Working layer Qty	Single /multi	Single /multi	Single /multi	Single /multi	Single	Single	Single	Single
Max. temperature	250℃	250℃	250℃	250℃	250℃	250℃	250℃	250℃
Motor power	3KW	4KW	5.5KW	7.5KW	7.5KW	7.5KW	11.0KW	13.KW
Heating power	9.6KW	9.6KW	12KW	18.6KW	18.6KW	20.6KW	20.6KW	27.8KW
Dimension(mm)	1670x1250x1600	1750x1350x1700	1810x1350x1700	1920x1500x2100	1950x1500x2100	2150x1700x2300	2300x1900x2500	2700x2300x3100
