Product Details:
|
| Condition: | New | Mixing Capacity(L): | 300 L |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Motor |
| Power (kW): | 45 KW | Compressed Air Pressure(MPa): | 0.8 MPa |
| Voltage: | As Local Request | Dimension(L*W*H): | 2800*1800*1800 |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Weight (KG): | 6000 KG | Showroom Location: | None |
| Applicable Industries: | Manufacturing Plant | Kneader: | Double Blade Type Sigma Kneader |
| Mixer: | Z Blade Type Sigma Mixer | After-sales Service Provided: | Video Technical Support |
| After Warranty Service: | Video Technical Support |

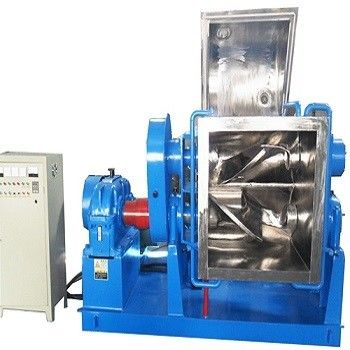

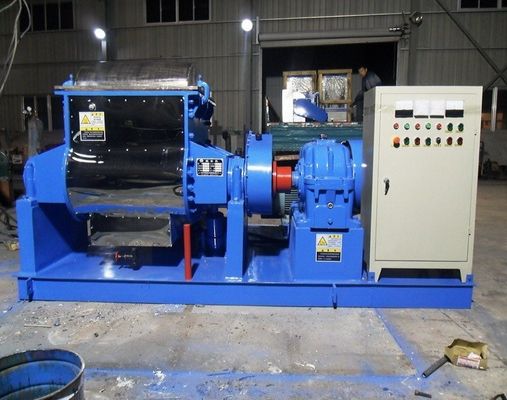

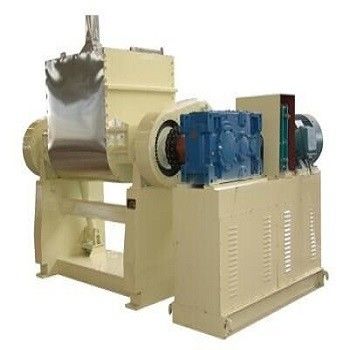

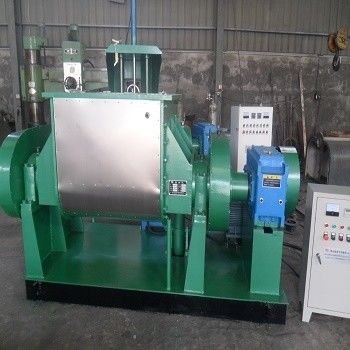

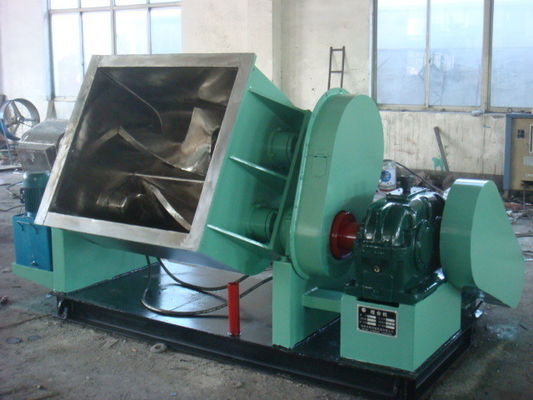

sigma mixer-z blade/kneader/sigma kneading :

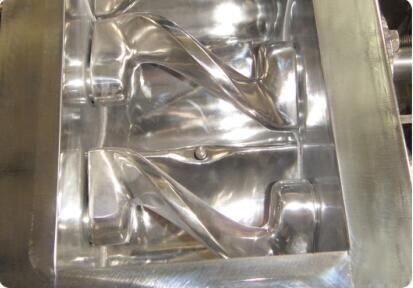

Sigma Kneader/Sigma Mixer is widely used for: plastic, rubber, silicone,chemical,CMC,BMC, soap,paint, printing ink, basoid, carbon, food stuff, medicine etc, Mixing room and agitating rotor are all made by stainless steel, The jacket of mixing room can be designed into electric heating, steam heating, steam heating or water cooling. Discharge ways include hydraulic tilt,, screw extruder and botton valve discharge etc.
Standard Sigma Kneader/Mixer:
| Model | Total Volume(L) | Working Volume(L) | Motor Power (KW) | Discharge way | Heating mode |
| NH - 50 | 50 | 30 | 2.2 ~ 4 | Hydraulic tilt | Steam/hot water |
| NH - 100 | 100 | 60 | 3 ~ 5.5 | Hydraulic tilt | Steam/hot water |
| NH - 200 | 200 | 120 | 5.5 ~ 7.5 | Hydraulic tilt | Steam/hot water |
| NH - 300 | 300 | 180 | 7.5 ~ 11 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 500 | 500 | 300 | 11 ~ 18.5 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 1000 | 1000 | 600 | 18.5 ~ 30 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 1500 | 1500 | 900 | 22~37 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 2000 | 2000 | 1200 | 37~55 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 3000 | 3000 | 1800 | 55~90 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 4000 | 4000 | 2400 | 75~110 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 5000 | 5000 | 3000 | 90~132 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 6000 | 6000 | 3600 | 132~160 | Hydraulic tilt/bottom drop | Steam/hot water |
Vacuum Sigma Kneader Mixer:
| Model | Total Volume(L) | Working Volume(L) | Motor Power (KW) | Discharge way | Heating mode |
| NHZ - 50 | 50 | 30 | 4 ~ 5.5 | Hydraulic tilt | Electric/steam |
| NHZ - 100 | 100 | 60 | 5.5 ~ 7.5 | Hydraulic tilt | Electric/steam |
| NHZ - 200 | 200 | 120 | 7.5 ~ 11 | Hydraulic tilt | Electric/steam |
| NHZ - 300 | 300 | 180 | 11 ~ 15 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 500 | 500 | 300 | 15 ~ 30 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 1000 | 1000 | 600 | 37 ~ 55 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 1500 | 1500 | 900 | 55 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 2000 | 2000 | 1200 | 75 ~ 90 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 3000 | 3000 | 1800 | 90 ~ 110 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 4000 | 4000 | 2400 | 132 ~ 160 | Hydraulic tilt/bottom drop | Electric/steam |
