Product Details:
|
| Condition: | New | Machine Type: | Rubber Injection Machine |
|---|---|---|---|
| Voltage: | 220V/380V/415V/440V | Dimension(L*W*H): | 2275x2095x3715 |
| Weight: | 7200 | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Showroom Location: | Turkey |
| Applicable Industries: | Manufacturing Plant | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Turkey | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Press: | Rubber Injection Molding Machine | Port: | Shanghai |

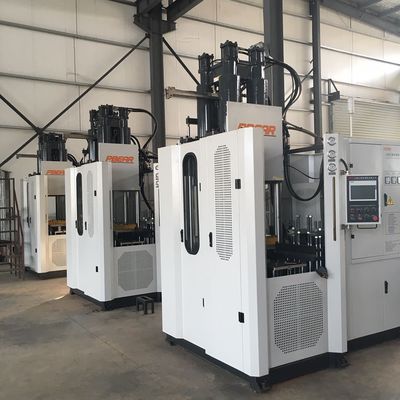

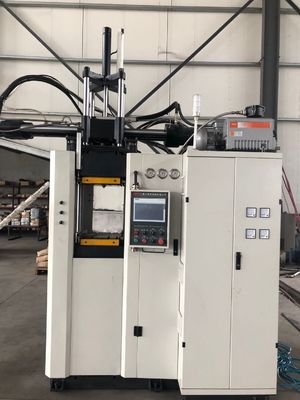

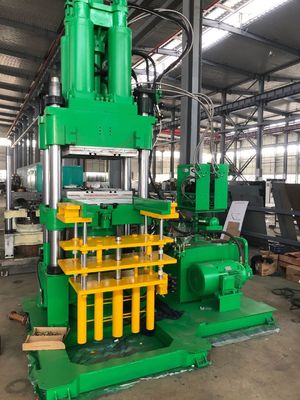

Vertical type Rubber Injection Moulding Press machine:
Applicable products:
The Vertical type Rubber Injection Molding Machine is applicable to produce various kinds of rubber products.
Machine Characteristics:
1. Stationary four cylinders balanced vertical injection structure, hyperstatic injection force.
2. Optimized feeding shot rod greatly reduces the rubber leakage and is convenient and fast for maintenance and rubber replacement.
3. Innovative feeding Shot-Tube-Constant-Temperature-System plus ultrashort nozzle achieve very few remaining materials and minimum pressure loss.
4. The vertical type rubber injection molding machine adopts international advanced FIFO (first-in-first-out) injection design.
5. Totally enclosed safety shield and safety grating, ensuring a safe operation condition for the workers.
6. Hot plate heating zones control makes the temperature more even.
7. More automatic functions available for options.
Standard unit:
-High efficient proportional pressure and proportional flow hydraulic system.
-Upper mold core lifter.
-Lower mold in-out device.
-Two levels demolding device.
-Totally enclosed safety shield and safety light curtain.
-Independent temperature control system for plasticizing and injection.
Optional Device:
-Variable pump system.
-Cold runner device.
-3RT/4RT multi-layers demolding device.
-Middle mold in-out device.
-Pulling claw device.
-Mold vacuum system.
-Quick mold changing device.
-Remote control.
-Printing function.
-Enlarged injection volume.
Technical Specification:
Model | XLB-V200T | XLB-V300T | XLB-V400T | XLB-V500T |
Clamping force(ton) | 200 | 300 | 400 | 500 |
Stroke(mm) | 500 | 500 | 600 | 600 |
Platen size(mm) | 600x600 | 700x700 | 700x800 | 800x850 |
Main piston diameter(mm) | 355 | 450 | 500 | 560 |
Max.platen gap(mm) | 550 | 550 | 700 | 700 |
Min. Mold thickness(mm) | 60 | 60 | 100 | 100 |
Core Lifter stroke (mm) | 200 | 200 | 250 | 250 |
Injection unit | ||||
Injection volume (CC) | 2000 | 3000 | 4000 | 5000 |
Injection pressure (Mpa) | 220 | 220 | 205 | 205 |
Screw diameter(mm) | 45 | 45 | 55 | 55 |
Nozzle aperture(mm) | 6 | 6 | 7 | 8 |
Others | ||||
System pressure (Mpa) | 21 | 21 | 21 | 21 |
Horse Power(HP) | 15 | 20 | 25 | 30 |
Heater power (KW) | 19 | 22 | 27 | 31 |
Total power(KW) | 36 | 40 | 52 | 58 |
Weight(Kg) | 7200 | 9300 | 11700 | 14700 |
Dimension(LxWxH:mm) | 2700x1200x3600 | 3100x1300x4000 | 3300x1400x4500 | 4000x1600x4500 |
Notes: the form only lists out the normal standard models, more special models can be customized to order.
