Custom Made Full Automatic Rubber Oil Seal Trimming Machine for Manufacturing Plant

Large Image : Custom Made Full Automatic Rubber Oil Seal Trimming Machine for Manufacturing Plant

Product Details:

Place of Origin:	China
Brand Name:	Mixer
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$6,000.00/sets >=1 sets
Packaging Details:	wooden case package
Delivery Time:	20-30days
Payment Terms:	T/T
Supply Ability:	30sets per months

Contact Now

Custom Made Full Automatic Rubber Oil Seal Trimming Machine for Manufacturing Plant

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Motor	Machine Type:	Trimming Machine
Voltage:	380v,220v	Dimension(LWH):	1300x1200x2000mm
Weight:	300	Warranty:	1 Year
Power (kW):	500W	Key Selling Points:	Famous Brand PLC
Showroom Location:	None	Applicable Industries:	Manufacturing Plant
Color:	Custom Made	Power(W):	500
After-sales Service Provided:	Video Technical Support	Marketing Type:	New Product 2020
Port:	SHANGHAI

Description:

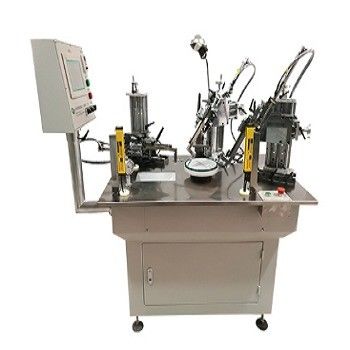

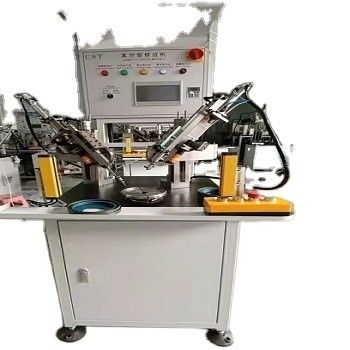

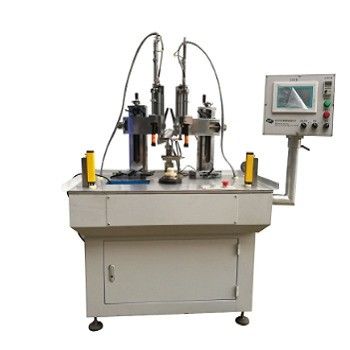

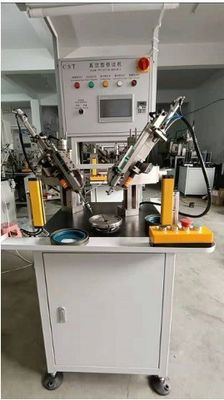

1.The Automatic Oil Seal Trimming Machine is specially designed for the fine trimming of rubber oil seal. The machine is equipped with a vibratory conveyor for auto feed, and with a chuck (or vacuum suction cup) to automatically clamp (or suck tight) the oil seal, and then the blades automatically start trimming the oil seal. One worker can operate 5~6 machines simultaneously to cut down the manufacturing cost greatly.

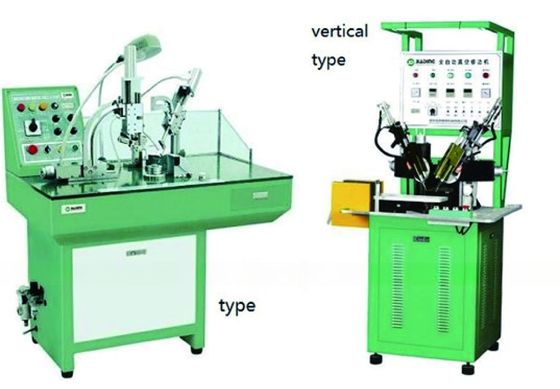

2.The machine is with automatic/semi-automatic/manual operation mode for options, and also has product accumulation function. Two blades can work independently at the same time or one after the other.
3. The workpiece processed by this auto oil seal trimming machine has the advantages of fine appearance, precise size and extremely high concentricity.
The control part adopts programmable controller PLC control, which is stable, efficient, low failure rate, high reliability and convenient maintenance.
The output adopts original imported MOS transistor, circuit insulation, optocoupler isolation, short circuit protection, ensuring reliable operation and long-life service.

Advantage:
The workpiece processed by this machine has the advantages of fine appearance, precise size and extremely high concentricity.
The control part adopts inverter controller PLC control, which is stable, efficient, low failure rate, high reliability and convenient maintenance.
The output adopts original imported MOS transistor, circuit insulation, optical coupling isolation, short circuit protection, and long life.

Composition structure:

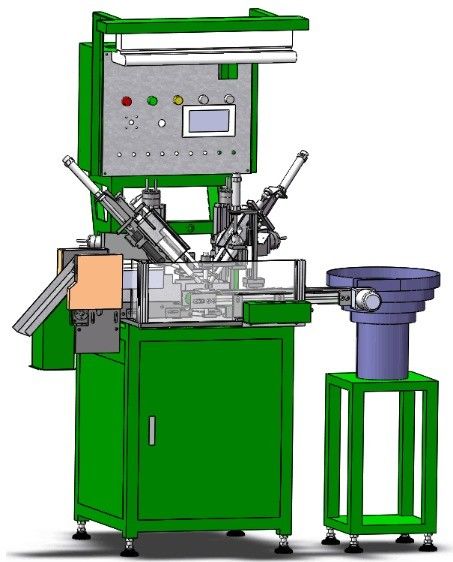

It is composed of chassis, headstock, left and right cross tool post, air blowing device, transmission device, air circuit, electric control and other parts.
Pneumatic components (cylinder, solenoid valve, vacuum pressure gauge) adopt Taiwan Airtac original accessories, and transmission device adopts Taiwan Shangyin slider guide.

SPECIFICATION:

Main technical parameter:

1. Control system: PLC, Air Pressure System and Man-Machine Interface Touch Control System.
2. Trimming range: O.D. φ10~φ40mm, φ30mm~φ60mm, depend on vibratory conveyor specification
3.Knife set: Two Knife sets
4. Adjustable cutting angle: 0-90 degrees
5. Working air pressure: 0.5-1.0 Mpa
6.Blade size: 2×3×100mm (high-speed steel or tungsten carbide)
7. Trimming speed: 15-20 pcs/min
8. Total power: 1.5KW
10. Dimensions: 1000×750×1750mm
11. Net weight: 320Kg
