Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | Bearing, Motor | Machine Type: | Rubber Cutting Machine |
| Dimension(L*W*H): | 1500x760x1500mm | Weight: | 200 |
| Warranty: | 1 Year | Power (kW): | 0.65 |
| Key Selling Points: | High-accuracy | Showroom Location: | Turkey |
| Applicable Industries: | Manufacturing Plant | Application: | Rubber Industry |
| Port: | Ningbo |

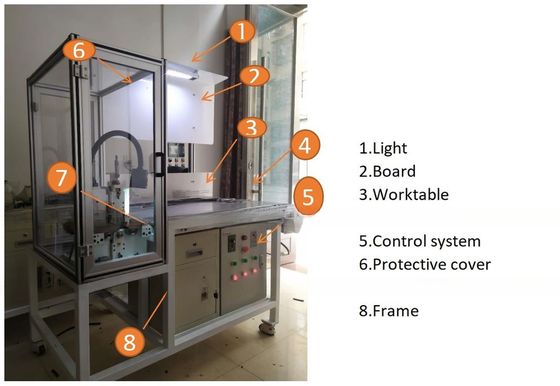

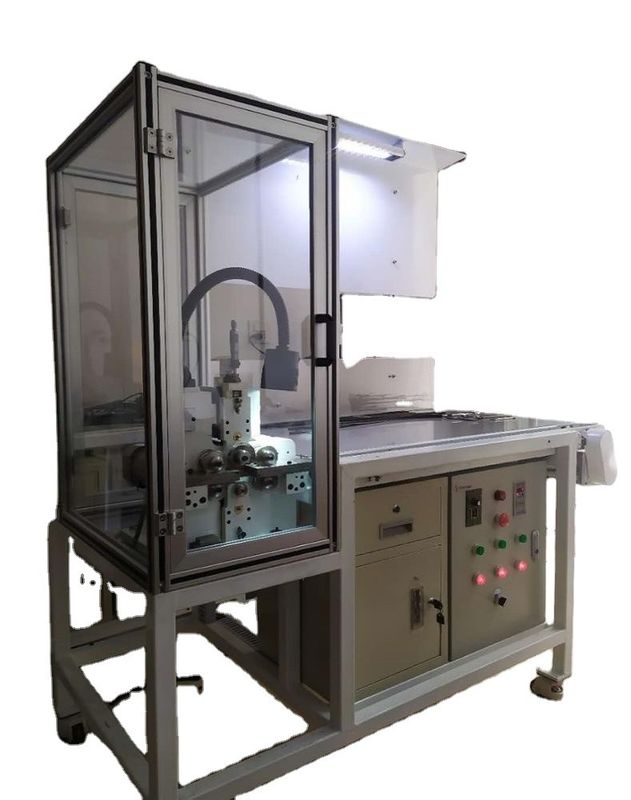

This machine is suitable for cutting windshield wiper rubber strips.
Model:YX-003
The basic data of the windshield wiper rubber slitting machine is as follows:
1. The worktable is made of thick and high-quality 304 stainless steel.
2. Transmission:
Motor for front guide wheel:200W.
Motor for rear guide wheel:200W
Motor for conveyor belt:250W
Inverter: Mitsubishi
3. Effective cutting range:
Cutting length: 350mm-1200mm
Cutting thickness: 0.3mm-2mm
Cutting width: 10mm-50mm
Cutting precision thickness control within 0.01mm
4. blade: inner hole Φ22mm, outer circle less than Φ64mm, thickness 1.2mm
Wear-resistant copper conveyor wheel: inner hole Φ16mm, outer circle 51.8mm, thickness 7mm.
Blade material: With special steel, acid resistance, alkali resistance, wear resistance, rust resistance, 10 times the service life of conventional die
36 cutting points for each blade, each cutting point can cut 3000-5000 PCS wiper rubber.
5.The die mold fixture needs to be customized by customer. Video for replacing the die mold fixture is available.
