Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Pump | Machine Type: | Rubber Punching Machine |
| Voltage: | 380V | Dimension(L*W*H): | 1380*1600*1790 |
| Weight: | 900 KGS | Warranty: | 1 Year |
| Key Selling Points: | High Precision | Showroom Location: | Turkey |
| Applicable Industries: | Manufacturing Plant | Marketing Type: | Ordinary Product |
| After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Turkey | Port: | Shanghai |

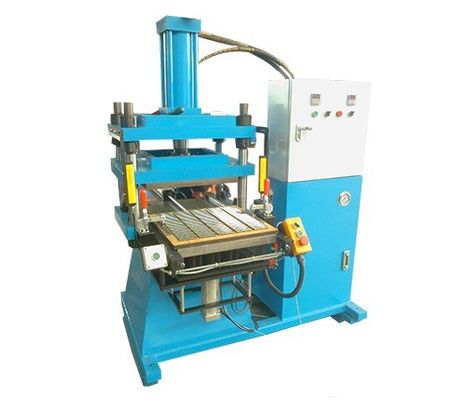

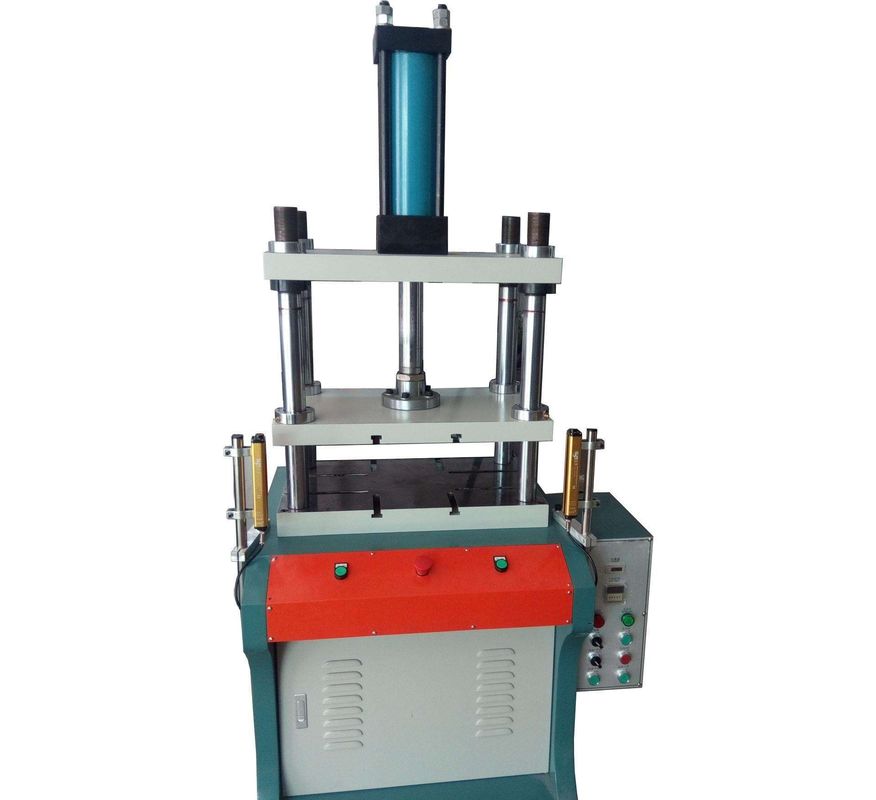

Rubber Punching Machine/Rubber Stamping Machine/Rubber flash Punching Machine
Technical specification:
| Hydraulic system pressure | 27kg/cm2 |
| Hydraulic system flow rate | 3..8L/min |
| Daylight opening gap | 200mm |
| Platen size | 410mm*450mm |
| Oil tank volume | 100L |
| Total power | 5.5 KW |
| Voltage | 380V/50hz |
| Dimension (LxWxH:mm) | 1380*1600*1790 |
| Weight | 900 KGS |
1. The rubber parts punching machine adopts the method of hydraulic punching, and the burrs (rubber flash) of the rubber products are separated at one time by the stamping of the die (mold&tool).
2. The starting method of the rubber punching machine is two-handed pushing, and the safety light curtain is provided in front of the equipment to ensure safety.
3. The bottom die can move forward and backward for loading and unloading.
4. The working pressure of the rubber punch machine can be adjusted.
