Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor, Pump | Machine Type: | Rubber Injection Machine |
| Voltage: | 220V/380V/415V/440V | Dimension(L*W*H): | 3610x2000 X3730 |
| Weight: | 6500 | Warranty: | 1 Year |
| Power (kW): | 11 | Key Selling Points: | Long Service Life |
| Showroom Location: | Turkey | Applicable Industries: | Manufacturing Plant |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Press: | Rubber Injection Molding Machine |
| Marketing Type: | Ordinary Product | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Turkey | Port: | Shanghai |

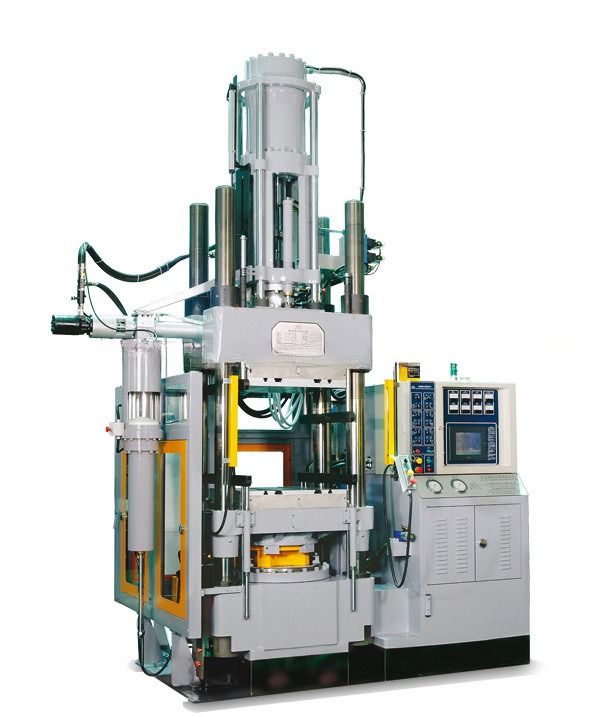

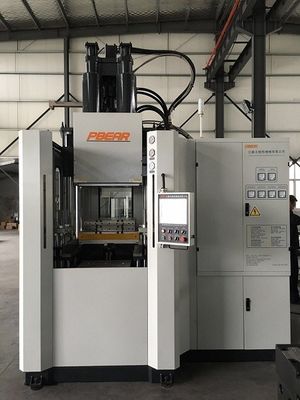

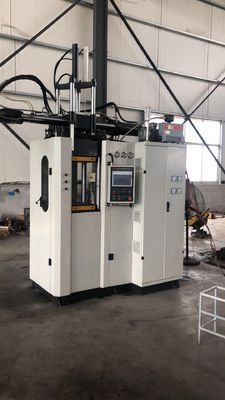

Rubber Injection Molding Machine is an ideal equipment for the production of natural &synthetic rubber,oil & heat resistant rubber, and reclaimed rubber.
Highlights of our rubber injection molding machine:
1.Mold handling (ejectors) system: 2RT/3RT/4RT;
2.Pressure & Speed control: proportional pressure and proportional flow control from PLC ensure the operation more stable, can control each movement reliably without causing shock.
3.Safety :all machine movements must immedatiatey stop if operator hand blocks the light curtain. Safety interlock for movements,fool-proof design.Replacement time of lubrication oil can be set up from touch screen and auto alarm.Two button simultaneous pressing must be required to start the operation (Optional).
4. Parallelism of heating platens:0.05mm PER 300mm,precision curing&moulding finishing.
5.PLC programmable controller + touch screen HMI, technical parameters setting is convenient and easy,recipes are storable.The whole process is monitored;internal fault is diagnosed and alarmed automatically.
6.Precise positioning when moving in or out the mold.
7.Mold temperature control accuracy is ±1℃.
