Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 5 Years |
| Core Components: | PLC, Engine, Gearbox, Motor | Machine Type: | Plate Vulcanizing Press |
| Voltage: | 220V/380V/415V/440V/480V | Weight: | 6000 |
| Warranty: | 1 Year | Power (kW): | 22 |
| Key Selling Points: | Famous Brand PLC | Showroom Location: | None |
| Applicable Industries: | Manufacturing Plant | Color: | Custom Made |
| Power(W): | 22KW | After-sales Service Provided: | Field Installation, Commissioning And Training |
| After Warranty Service: | Video Technical Support | Port: | Shanghai |

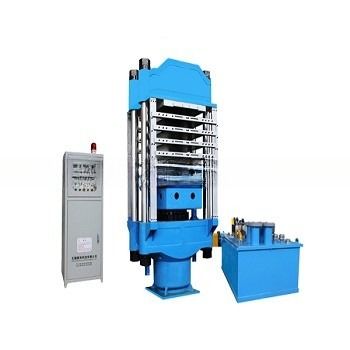

1000t hydraulic eva foaming platen press machine
| m | Model | Total pressure | Cylinder diameter | Platen size | Daylight | Layers | Column Span | Motor power |
| Ton | mm | mm | mm | mm | kw | |||
| 1 | MXF-250T | 250 | 380 | 800*1000 | 140 | 4 | 1000 | 7.5 |
| 2 | MXF-300T | 300 | 450 | 900*1100 | 150 | 4 | 1000 | 7.5 |
| 3 | MXF-500T | 500 | 560 | 1000*1200 | 150 | 4 | 1300 | 11 |
| 4 | MXF-650T | 650 | 650 | 1100*1350 | 150 | 6 | 1400 | 11 |
| 5 | MXF-850T | 850 | 762 | 1200*1500 | 150 | 6 | 1600 | 15 |
| 6 | MXF-1000T-A | 1000 | 813 | 1350*1700 | 150 | 6 | 1800 | 22 |
| 7 | MXF-1000T-B | 1000 | 813 | 1200*1500 | 150 | 6 | 1500 | 22 |
| 8 | MXF-1100T | 1100 | 838 | 1350*1700 | 150 | 6 | 1800 | 22 |
| 9 | MXF-1350T-A | 1350 | 915 | 1350*1800 | 180 | 6 | 1800 | 22 |
| 10 | MXF-1350T-B | 1350 | 915 | 1350*1500 | 150 | 6 | 1500 | 22 |
| 11 | MXF-1650T-A | 1650 | 1016 | 1400*2200 | 180 | 6 | 1800 | 30 |
| 12 | MXF-1650T-B | 1650 | 1016 | 1500*2400 | 200 | 9 | 2200 | 30 |
