Product Details:
|
| Condition: | New | Voltage: | 220V/380V/415V/440V/480V |
|---|---|---|---|
| Dimension(L*W*H): | 2900x2355x4400mm | Weight: | 8500 KG |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Press: | Silicone Rubber Injection Molding Machine | Power: | 18.5KW |
| Port: | Shanghai |

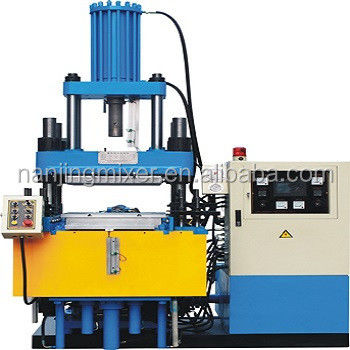

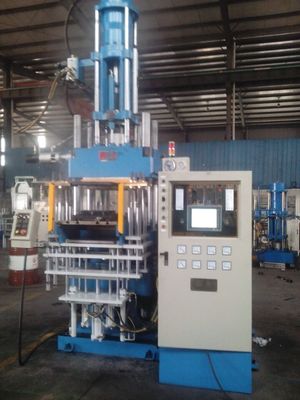

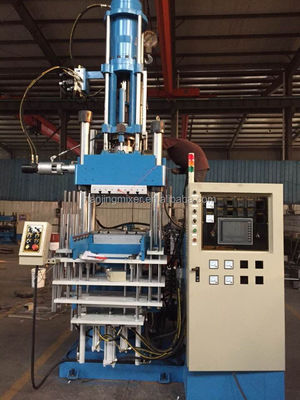

Rubber HydraulicTransfer molding press machine
Rubber Hydraulic Transfer type Molding Machine can produce the most of the products which are produced by Rubber Injection Molding Machine. Especially for the production of complex shapes, metal insert product and other hard molding products with high precision and high performance requirements, highlighting its quality and cost advantages.
Model | JC-YCB100T | JC-YCB200T | JC-YCB300T | JC-YCB350T | JC-YCB500T |
Tonnage | 100T | 200T | 300T | 350T | 500T |
Max.system pressure | 21 Mpa | 21 Mpa | 21 Mpa | 21 Mpa | 21 Mpa |
Rapid Clamping speed | ≥60mm/s | ≥60mm/s | ≥60mm/s | ≥50mm/s | ≥50mm/s |
Platen size(mm) | 450x450
500x500 | 510x540
600x550 |
700x650 |
700x700 | 700x700 800x800 950x800 |
Daylihgt opening (mm) | 350 | 400 | 400 | 400 | 400 |
Max.temperature(℃) | 250 | 250 | 250 | 250 | 250 |
Material barrel size(mm) | φ80x255 | φ90x290 | φ110x355 | φ110x355 | φ130x445 |
Injection pressure (Mpa) | 60 | 60 | 100 | 100 | 100 |
Injection stroke(mm) | 350 | 380 | 450 | 450 | 580 |
Max.ejector force | 60KN | 60KN | 100KN | 100KN | 100KN |
Mold handling system | 2TR/3RT/4RT | 2TR/3RT/4RT | 2TR/3RT/4RT | 2TR/3RT/4RT | 2TR/3RT/4RT |
Ejector stroke(mm) | 250 | 300 | 350 | 400 | 450 |
Motor power(KW) | 5.5 | 7.5 | 7.5 | 11 | 13 |
Heating power(KW) | 9.6 | 18.6 | 20.6 | 20.6 | 27.8 |
Dimension(LxWxH:mm) | 1700x2100x3100 | 1950x2300x3250 | 2150x2600x3900 | 2550x3600x5250 | 2750x4200x5950 |
Oil tank capacity(Liters) | 270 | 320 | 350 | 400 | 600 |
Notes: the form only list out the normal standard model, more special models can be customized to order.
