Product Details:
|
| Condition: | New | Voltage: | 220V/380V |
|---|---|---|---|
| Dimension(L*W*H): | 1810x1350x1700mm | Weight: | 3000kg |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | Blue | Power: | 5.5KW |
| Port: | Shanghai |

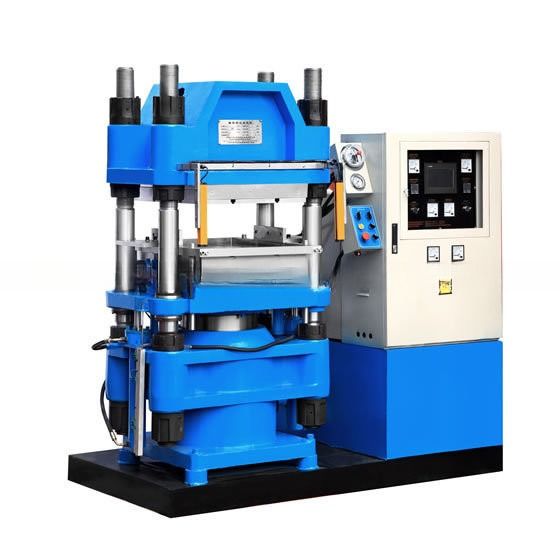

Rubber Hot Press Machine/Rubber Vulcanizing Hot Press/ Hot Press Machine:
Workflow:
Initial state→Put rubber in mold→Manually push mold in→Start program→Fast mold closing→Slow lock,pressing→Exhaust→Curing→Mold open→Manually move mold out→Take out finished product.
Model | JC-XLB63T | JC-XLB100T | JC-XLB150T | JC-XLB200T | JC-XLB250T | JC-XLB300T | JC-XLB350T | JC-XLB500T |
Clamping force | 63T | 100T | 150T | 200T | 250T | 300T | 350T | 500T |
Max.sytem pressure | 21Mpa | 21Mpa | 21Mpa | 21Mpa | 21Mpa | 21Mpa | 21Mpa | 21Mpa |
Clamping stroke(mm) | 250 | 250 | 300 | 300 | 300 | 300 | 300 | 300 |
Rapid clamping speed (mm/s) |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
≥50 |
≥50 |
≥50 |
Platen size(mm) | 380x380
400x400 | 400x400 450x450 500x500 |
500x500 | 510x540
600x550 |
650x550 | 600x600
700x700 |
700x700 | 800x800
1000x850 |
Max.daylight opening(mm) |
350 |
350 |
350 |
350 |
350 |
350 |
350 |
350 |
Working layers | Single/Multi | Single/Multi | Single/Multi | Single/Multi | Single layer | Single layer | Single layer | Single layer |
Max.temperature(℃) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
Motor power(KW) | 3 | 4 | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 13 |
Heating power(KW) | 9.6 | 9.6 | 12 | 18.6 | 18.6 | 20.6 | 20.6 | 27.8 |
Dimension(LxWxH:mm) | 1670x1250x1600 | 1750x1350x1700 | 1810x1350x1700 | 1920x1500x2100 | 1950x1500x2100 | 2150x1700x2300 | 2300x1900x2500 | 2700x2300x3100 |
Oil tank capacity (Liters) | 200 | 250 | 280 | 320 | 330 | 350 | 380 | 400 |
