Product Details:
|
| Condition: | New | Voltage: | 380V/220V/480V |
|---|---|---|---|
| Dimension(L*W*H): | 500*300*380cm | Weight: | 15.5 Ton |
| Warranty: | 1 Year | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support |
| Power: | 22KW | Port: | Shanghai |

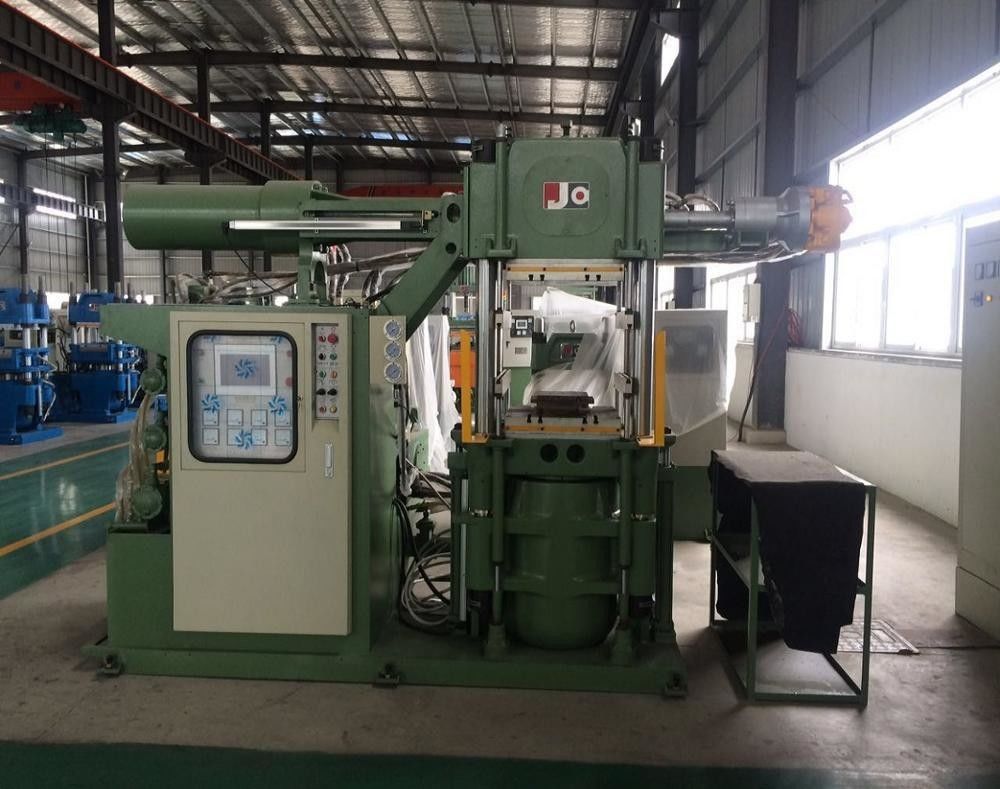

Rubber Injection Molding Machine is used for the production of natural &synthetic rubber,oil & heat resistant rubber, and reclaimed rubber.Horizontal type Injection Moulding Machine is more compact in height.
Model |
| JCU-200T | JCU-260T | JCU-300T | JCU-400T |
|
| JCU-500T |
Clamping Force | TON | 200 | 260 | 300 | 400 |
|
| 500 |
Shot Voolume | C.C | (1000)~1500 | (1500)~2000 | (2000)~3000 | (3000)~5000 |
|
| (3000)~7000 |
Injection pressure | Kg/cm2 | 1700-1800 | 1700-1800 | 1700-1800 | 1700-1800 |
|
| 1700-1800 |
Screw Diameter | mm | 45 | 45 | 50 | 50 |
|
| 50 |
Screw Speed | Rpm/min | 0-120 | 0-120 | 0-120 | 0-120 |
|
| 0-120 |
Material Size | mm | 12×50 | 12×50 | 15×60 | 15×60 |
|
| 15×60 |
Piston Stroke | mm | 460 | 580 | 510 | 510 |
|
| 580 |
Plate Size | mm | -480×500 -550x600 | 520×580 | -650×730 -550x650 | 750×800 |
|
| 750×850 |
Piston Diameter | mm | 356 | 406 | 430 | 500 |
|
| 560 |
Motor | kw | 11 | 15 | 18.5 | 18.5 |
|
| 22 |
Heating Capacity | kw | 13.6 | 16 | 19 | 19.6 |
|
| 22 |
System Pressure | Kg/cm2 | 210 | 210 | 210 | 210 |
|
| 210 |
Dimensions | cm | 420×250 ×340 | 450×270 ×340 | 450×280 ×350 | 460×285 ×350 |
|
| 500×300×380 |
Weight | kg | 8000 | 8800 | 10000 | 11500 |
|
| 15500 |
