Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 5 Years |
| Core Components: | PLC, Engine, Motor, Gear | Machine Type: | Plate Vulcanizing Press |
| Voltage: | 380V | Weight: | 9000 |
| Warranty: | 1 Year | Key Selling Points: | Famous Brand PLC |
| Showroom Location: | None | Applicable Industries: | Manufacturing Plant |
| Press: | Rubber Vulcanizing Press | Rubber Tile: | Rubber Tile Vulcanizing Press |
| Power(W): | 7.5KW | After-sales Service Provided: | Field Installation, Commissioning And Training |
| After Warranty Service: | Video Technical Support | Marketing Type: | New Product 2020 |
| Port: | Shanghai Or NingBo |
Rubber plate press, rubber hot plate press,rubber curing press,hot press for pvc flooring,rubber plate vulcanizing press,hot press for rubber,plate vulcanizing press for rubber,press machine for kinds of rubber products,like rubber mat,rubber plate,rubber flooring,pvc flooring,solid tire,etc.
Features

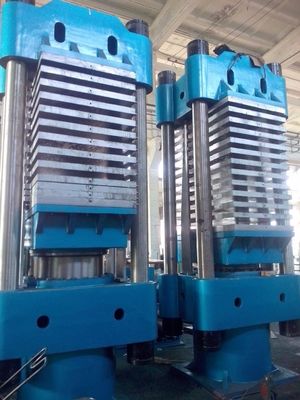

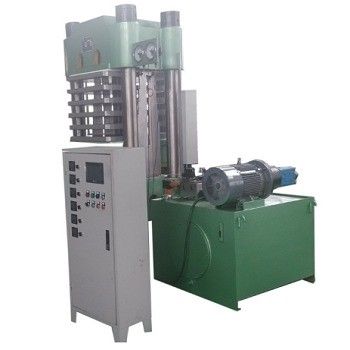

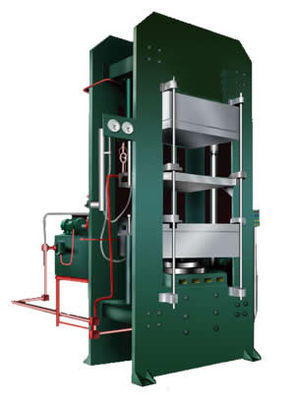

4-columns structure or frame structure,as a below pressing type(upwards), the heating plate opens by the self-weight of the hot plate, platform and plunger.
2.The plate size,piston stroke and total pressure can be made according to customers’ actual requirement,the machine can equip with manual-pull mold and automatic hydraulic-pull mold,which reduces labors’ working strength and inconvenience.
3.This machine has three kinds of control method:manually,semi-auto. and full auto.
4.Fast speed mold-closing, high production efficiency, low locking speed to protect mold.
5.Made of nodular cast iron, the oil cylinder of machine is improved in compressed strength and wear resistance.
6.Adopting tubular electric heating component to heat up, the machine can reduce air pollution to keep workshop clean without boiler.
7.The rubber platen vulcanizing press is good look in shape, rational in structure, easy control, safe and reliable operation.
Specification:
|
Model |
Clamping force (Ton) |
Working Pressure (Mpa) |
Plate size (mm) |
Plates distance (mm) |
Max. Stroke (mm) |
Heating Power (KW) |
Motor Power (KW) |
| XLBD-25T | 25 | 16 | 300x300 | 100 | 250 | 4.8 | 3 |
| XLBD-50T | 50 | 16 | 400x400 | 150 | 300 | 9 | 3 |
| XLBD-63T | 63 | 20 | 500x500 | 150 | 300 | 12 | 4 |
| XLBD-100T | 100 | 20 | 800x800 | 200 | 300 | 14 | 3 |
| XLBD-160T | 160 | 20 | 750x850 | 125 | 600 | 16 | 3 |
| XLBD-200T | 200 | 25 | 800x800 | 250 | 300 | 20 | 7.5 |
| XLBD-315T | 315 | 25 | 1000x1000 | 250 | 300 | 24 | 11 |
| XLBD-500T | 500 | 25 | 1100x1100 | 250 | 350 | 30 | 15 |
| XLBD-630T | 630 | 25 | 1200x2000 | 300 | 350 | 35 | 15 |
| XLBD-1000T | 1000 | 25 | 1200x1200 | 300 | 350 | 35 | 18.5 |
| XLBD-1250T | 1250 | 25 | 1500x1200 | 300 | 400 | 40 | 18.5 |
