Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Pump, Hydraulic Parts | Machine Type: | Plate Vulcanizing Press |
| Voltage: | 220V/380V/480V | Dimension(L*W*H): | L7800xW1800xH2200mm |
| Weight: | 11000 | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Showroom Location: | Turkey |
| Applicable Industries: | Manufacturing Plant | Power(W): | 15KW |
| After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Turkey | Marketing Type: | Ordinary Product |
| Port: | Shanghai,Xiamen |

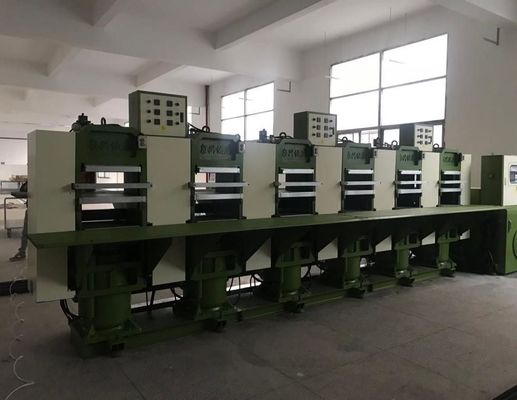

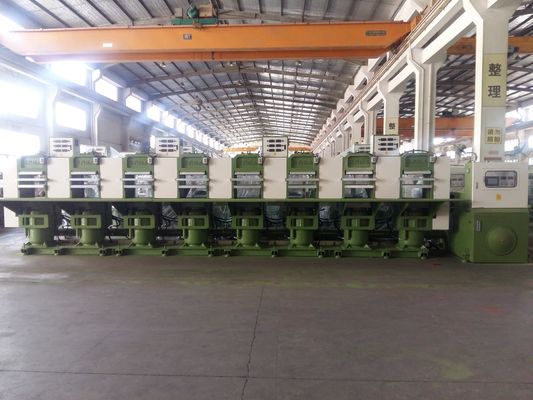

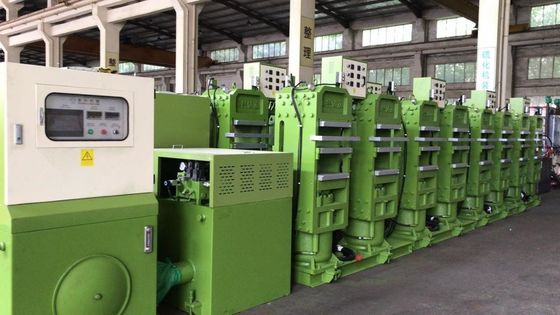

This machine is specially developed for rubber sole moulding production, normally there are 6 stations,8 stations and 10 stations for options.
Clamping force:150T
Platen size:450x500mm
Ram diameter:300mm
Daylight(layer):2
Daylight opening(distance):180mm
Ram stroke:360mm
Electric heating power:54KW
Motor power:15KW
Dimension:L7800xW1800xH2200mm
Weight:11000 kgs
