Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | PLC, Engine | Machine Type: | Injection Molding Machine |
| Voltage: | 220V/380V/415V/440V/480V | Dimension(L*W*H): | 3400x1600x3000 |
| Weight: | 7500 | Warranty: | 1 Year |
| Power (kW): | 36 | Key Selling Points: | Famous Brand PLC |
| Showroom Location: | Turkey | Applicable Industries: | Manufacturing Plant |
| Power(W): | 36kw | After-sales Service Provided: | Field Installation, Commissioning And Training |
| After Warranty Service: | Online Support | Marketing Type: | New Product 2020 |
Applicable products:

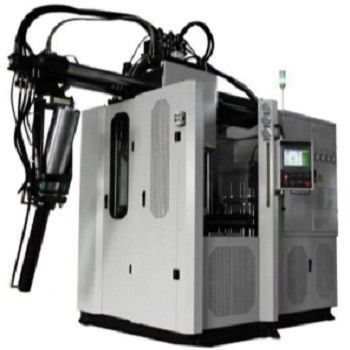

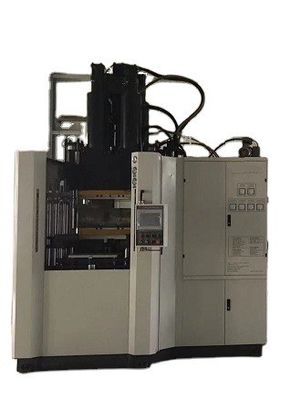

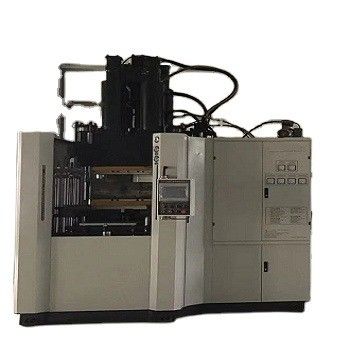

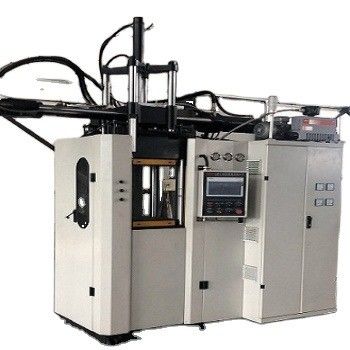

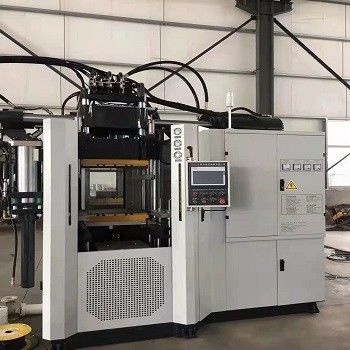

The horizontal silicone rubber injection moulding machine is mainly used in electric silicone insulation, medical silicone products, kitchen silicone wares, and other kinds of silicone parts.
Machine Characteristics:
1.The horizontal silicone injection moulding machine adopts FIFO injection structure,the injection force is stable and reliable.
2.Optimized feeding shot rod greatly reduces the rubber leakage and is convenient and fast for maintenance and rubber replacement.
3.Large capacity of feeding structure and the automatic rotary feeding barrel, efficiently feeding, suitable for fast production replacement of different colors and silicone with different property.
4.Totally enclosed safety shield and safety grating, ensuring a safe operation condition for the workers.
5.Hot plate heating zones control makes the temperature more even.
6.More automatic functions available for options.
Standard configuration for the horizontal silicone rubber injection moulding machine:
High efficient proportional pressure and proportional flow hydraulic system.
Upper mold core lifter.
Lower mold in-out device.
two levels demolding device.
Totally enclosed safety shield and safety light curtain.
Independent temperature control system for plasticizing and injection.
