Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor, Pump, Hydraulic Parts | Machine Type: | Plate Vulcanizing Press |
| Voltage: | 220V/380V/460V/480V | Dimension(L*W*H): | 8x2.2X2.3 M |
| Weight: | 18000 Kgs | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Showroom Location: | Turkey |
| Applicable Industries: | Manufacturing Plant | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Turkey |
| Marketing Type: | Ordinary Product | Port: | Shanghai |

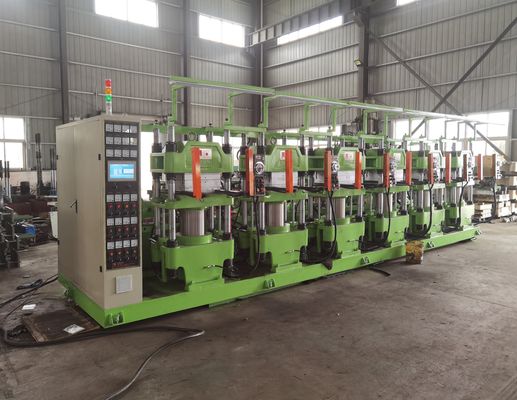

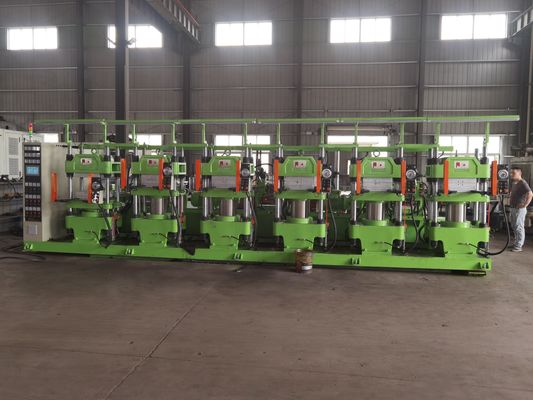

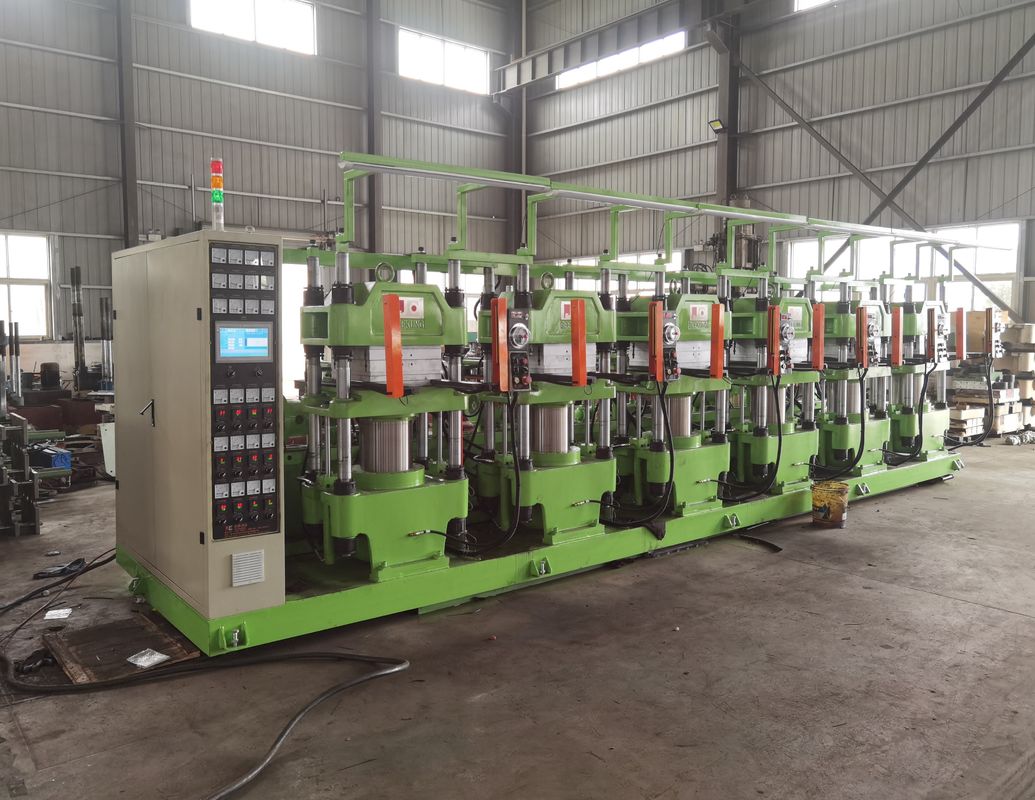

Rubber Sole Compression Moulding Machine
Technical spefication:
| 1. | TYPE | Four columns type, 6 working stations sharing one control panel, each station can be operated separately. Automatic bottom mold plate move-in-out |
| 2. | CLAMPING FORCE | 150 TON |
| 3. | MAIN RAM DIAMETER | 300mm |
| 4. | STROKE OF MAIN RAM | 275mm |
| 5. | DAYLIGHT OPENING | 300~350mm |
| 6. | HEATING PLATEN SIZE | 450x450mm |
| 7. | MAX. SYSTEM PRESSURE | 21 Mpa |
| 8. | WAY OF HEATING | Electric heating |
| 9. | ELECTRIC HEATING POWER | 8.8 KW*6 |
| 10. | MOTOR POWER | 7.5KW*3 |
| 11. | TOTAL POWER | 75 KW |
| 12. | WORKING DAYLIGHT | 01 |
| 13. | WAY OF MOLD OPEN | 2 RT (top mold is fixed onto the top heating plate,bottom mold fixed onto the bottom heating plate,after opening, bottom mold can move out) |
| 14. | Dimension (m) | L8xW2.2XH2.2 |
| 15. | WEIGHT (ton) | 18 |
