Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Motor, Gear | Machine Type: | Rubber Punch Machine |
| Voltage: | 380V | Dimension(L*W*H): | 1380*1600*1790 |
| Weight: | 900 | Warranty: | 1 Year |
| Key Selling Points: | Famous Brand PLC | Showroom Location: | None |
| Applicable Industries: | Manufacturing Plant | Power(W): | 5.5kw |
| Voltage: | 380v 50hz | Platen Size: | 410mm*450mm |
| Daylight Opening Gap: | 200mm | Hydraulic System Flow Rate: | 3..8L/min |
| Hydraulic System Pressure: | 27kg/cm2 | Oil Tank Volume: | 100L |
| After-sales Service Provided: | Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support |
| Marketing Type: | New Product 2020 | Port: | Shanghai Or NingBo |

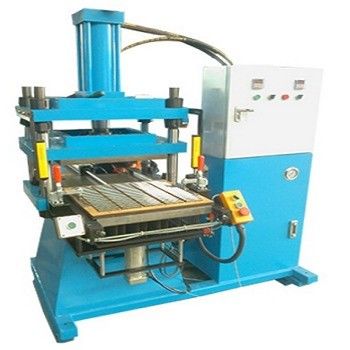

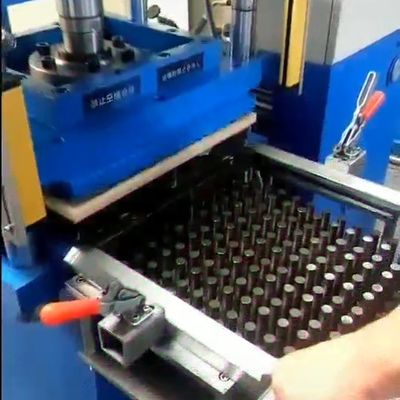

1. The rubber parts punching machine adopts the method of hydraulic punching, and the burrs (rubber flash) of the rubber products are separated at one time by the stamping of the die (mold&tool).
2. The starting method of the rubber punching machine is two-handed pushing, and the safety light curtain is provided in front of the equipment to ensure safety.

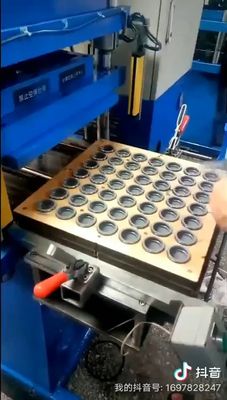

3. The bottom die can move forward and backward for loading and unloading.
4. The working pressure of the rubber punch machine can be adjusted.
