Product Details:
|
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Motor, Pump |
| Key Selling Points: | Long Service Life | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Turkey | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support |
| Marketing Type: | Ordinary Product | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Turkey | Port: | Shanghai |

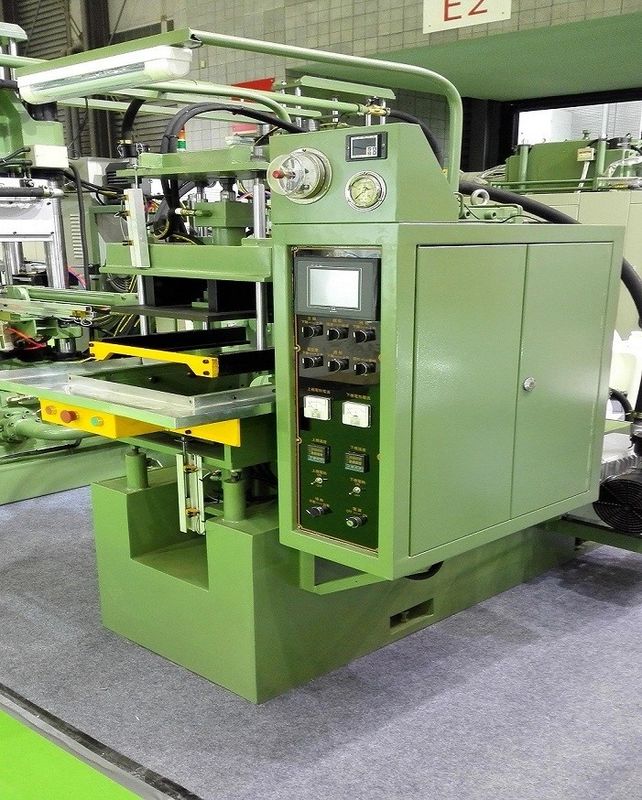

This Rubber Oil Seal Vacuum Compression Molding Press machine is specially developed to produce kinds of oil seals for automobile,machines, bearings,etc.
| Clamping force (tonnage) | Main piston diameter | Platen size (mm) | Mold holder size(mm) | Main piston stroke(mm) | Max.daylight opening (mm) | Power consumption (KW) |
| 80T | φ225 | 250x300 290x320 | 290x320 330x330 | 140 | 150/180 | 6.6 |
| 100T | φ250 | 350x400 | 390x420 | 140 | 150/180 | 8.4 |
| 150T | φ300 | 450x480 | 500x520 | 140 | 150/180 | 16.9 |
| 250T | φ400 | 570x610 | 620x620 | 140 | 150/180 | 26.3 |
