Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor, Oil Seal, Vacuum Pump, Hydraulic Valve | Machine Type: | Vacuum Vulcanizing Press |
| Voltage: | 220V/380V/460V | Weight: | 3500 |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Showroom Location: | Turkey | Applicable Industries: | Manufacturing Plant, Rubber Products Factory, Rubber Oil Seal Factory |
| Marketing Type: | Ordinary Product | Port: | Nanjing |

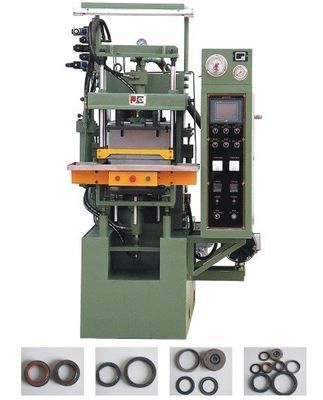

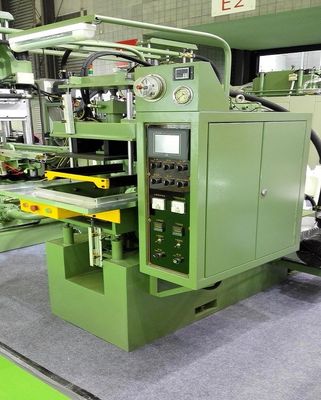

The Vacuum Rubber Oil Seal Vulcanizing Molding Machine a specially developed rubber compression molding press to produce kinds of oil seals for automobile,machinery,etc.It features automated operation and fitted with vacuum system,significantly improving the productivity and quality of the rubber oil seals.
Technical specification:
| Clamping force (tonnage) | Main piston diameter | Platen size (mm) | Mold holder size(mm) | Main piston stroke(mm) | Max.daylight opening (mm) | Power consumption (KW) |
| 80T | φ225 | 250x300 290x320 | 290x320 330x330 | 140 | 150/180 | 6.6 |
| 100T | φ250 | 350x400 | 390x420 | 140 | 150/180 | 8.4 |
| 150T | φ300 | 450x480 | 500x520 | 140 | 150/180 | 16.9 |
| 250T | φ400 | 570x610 | 620x620 | 140 | 150/180 | 26.3 |
Note: the tables only lists out the normal popular models,more sizes&capacity can be customized.
