Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 5 Years |
| Core Components: | PLC, Engine, Bearing, Motor, Gear | Machine Type: | Rubber Injection Machine |
| Voltage: | 220V/380V/415V/440V/480V | Dimension(L*W*H): | 2135X1240 X2870 |
| Weight: | 5200 | Warranty: | 1 Year |
| Key Selling Points: | Famous Brand PLC | Showroom Location: | None |
| Applicable Industries: | Manufacturing Plant | Press: | Silicone Rubber Injection Molding Machine |
| Power(W): | 5.5KW | After-sales Service Provided: | Field Installation, Commissioning And Training |
| After Warranty Service: | Video Technical Support |

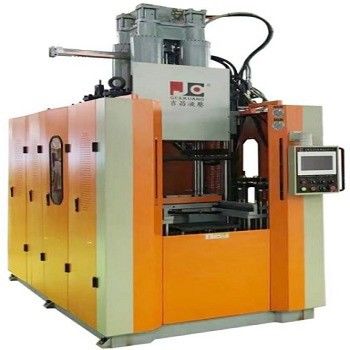

Silicone Rubber Inejction Vulcaning Machine /Silicone Injection Curing Machine :
APPLICATIONS: Excellent design for the production of solid silicon material only.
| Model | | JC-RH50-250CC | JC-RH65-250CC | JC-RH200-1000CC(A) | JC-RH200-1000CC(B) | JC-RH260-1500CC | JC-RH300(A) | JC-RH300(B) |
| Shot Voolume | C.C | 300 | 300 | (1000)~1500 | (1000)~1500 | (1500)~2000 | (2000)~3000 | (2000)~3000 |
| Injection pressure | Kg/cm2 | 1700-1800 | 1700-1800 | 1700-1800 | 1700-1800 | 1700-1800 | 1700-1800 | 1700-1800 |
| Lnjection Hydraulic pressure | Kg/cm2 | 150 | 150 | 150-160 | 150-160 | 150-160 | 150-160 | 150-160 |
| Screw Diameter | mm | 32 | 32 | 45 | 45 | 45 | 50 | 50 |
| Screw Speed | Rpm/min | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 |
| Material Size | mm | 10×30 | 10×30 | 12×50 | 12×50 | 12×50 | 15×60 | 15×60 |
| Clamping Force | TON | 60 | 60 | 200 | 200 | 260 | 300 | 300 |
| Piston Stroke | mm | 360 | 370 | 460 | 460 | 580 | 510 | 510 |
| Plate Size | mm | 350×380 | 290×320 | 480×500 | 550×620 | 520×580 | 650×730 | 550×650 |
| Space Between Tie Bar | mm | 445 | 390 | 575 | 675 | 645 | 790 | 690 |
| Piston Diameter | mm | 180 | 200 | 356 | 356 | 406 | 430 | 430 |
| Motor | kw | 5.5 | 5.5 | 11 | 11 | 15 | 18.5 | 18.5 |
| Heating Capacity | kw | 7.2 | 7.2 | 13.6 | 13.6 | 16 | 19 | 18 |
| Thermal Oil Pump | hp | 1/2×1 | 1/2×1 | 1/2×2 | 1/2×2 | 1/2×2 | 1/2×2 | 1/2×2 |
| System pressure | Kg/cm2 | 210 | 210 | 210 | 210 | 210 | 210 | 210 |
| Machine Dimensions | mm | 2275×1705 ×2900 | 2135×1240 ×2870 | 3610×2000 ×3730 | 2275×2095 ×3715 | 2750×2130 ×3780 | 2900×2355 ×4400 | 3000×2345 ×4470 |
| Machine Weight | kg | 2300 | 2200 | 5800 | 6500 | 6800 | 8500 | 7500 |
manufacturers advantages and product selling points:
1,Rich experience in manufacturing industry well-known brands. Reasonable price, fast delivery, "began in customer requirements, and finally customer satisfaction".
2,Because various Kinds of model, in order to allow you to quickly find the most suitable product, you just contact us, we can help you meet your requirements recommended related products!
3,We provide you with products and services. We will also provide you with related products and services in the future, and you can enjoy your purchase all our products quality service.
4,Our plant have more than twenty years of production experience and history, the scale of our factory, product quality, production technology in the industry are at the forefront.
