automatic customized hydraulic vulcanizing oil press machine

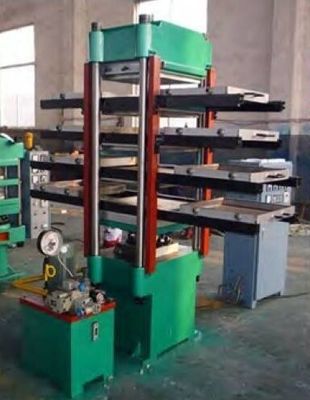

Large Image : automatic customized hydraulic vulcanizing oil press machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Geekung

Payment & Shipping Terms:

Price:	$7,000.00/sets >=1 sets
Packaging Details:	export package
Payment Terms:	T/T
Supply Ability:	10 Set/Sets per Quarter

Contact Now

automatic customized hydraulic vulcanizing oil press machine

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Warranty Of Core Components:	More Than 5 Years
Core Components:	PLC, Engine, Motor, Gear	Machine Type:	Plate Vulcanizing Press
Voltage:	220V/380V/415V/440V	Dimension(LWH):	1820x1066x3760
Weight:	30	Warranty:	12 Months
Key Selling Points:	Famous Brand PLC	Showroom Location:	None
Applicable Industries:	Manufacturing Plant	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Color:	Custom Made	Power(W):	22.5KW
After Warranty Service:	Video Technical Support	Marketing Type:	New Product 2020
Port:	Shanghai

Product Description

hydraulic solid tyre press machine/presses for tires/press vulcanizer

Application: for various kinds of soild rubber tires.

Specification

Technical parameter

Model	Q812x812x2	Q900x900x1	Q1066x1066x1	Q1200x1200x1	Q1500x1500x1
Name	Solid tire press	Solid tire press	Solid tire press	Solid tire press	Solid tire press
Nominal clamping force (MN)	2.5	5.0	7.5	6.0	12.0
Plate size(MM)	812x812	900x900	1066x1066	1200x1200	1500x1500
Unit pressure of the plate(Mpa)	3.8	6.2	6.6	4.2	5.3
Dayligh opening(MM)	775	736	832	520	520
Layers	2	1	1	2	2
Max.piston stroke(MM)	965	736	863	600	600
Plunger diameter(MM)	500	650	600	650	900
Work hydraulic pressure(Mpa)	13	15	15	18	19
Max.steam pressure(Mpa)	0.8	0.8	0.8	0.8	0.8
Motor power(KW)	7.5	13	22.5	13	26
Dimension(MM)	1340x812x4110	1500x900x3310	1820x1066x3760	2200x1400x44000	2520x1500x51100
Weight(T)	12	19	30	20	44
