Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Pump, Valve | Machine Type: | Vacuum Vulcanizing Press |
| Voltage: | 220V/380V/460V | Dimension(L*W*H): | 4000x1500x3000mm |
| Weight: | 18500 | Warranty: | 1years |
| Power (kW): | 11KW | Key Selling Points: | Long Service Life |
| Showroom Location: | Turkey, Viet Nam, Brazil, India, Russia, Thailand, Malaysia | Applicable Industries: | Manufacturing Plant, Rubber Product Company |
| Port: | Shanghai |

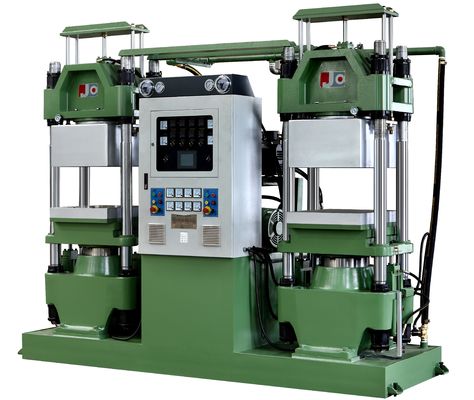

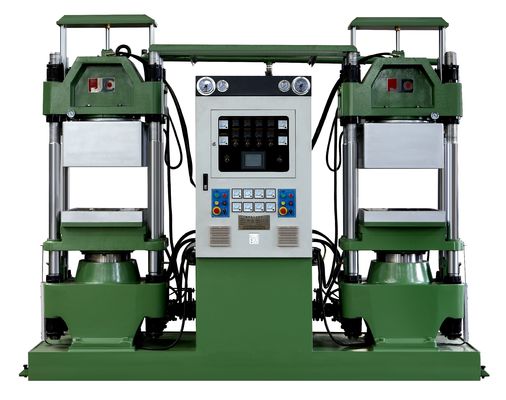

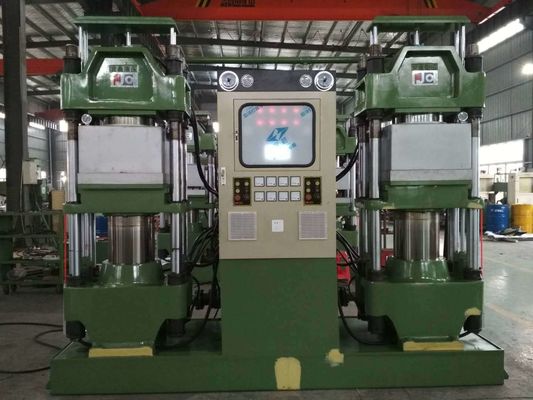

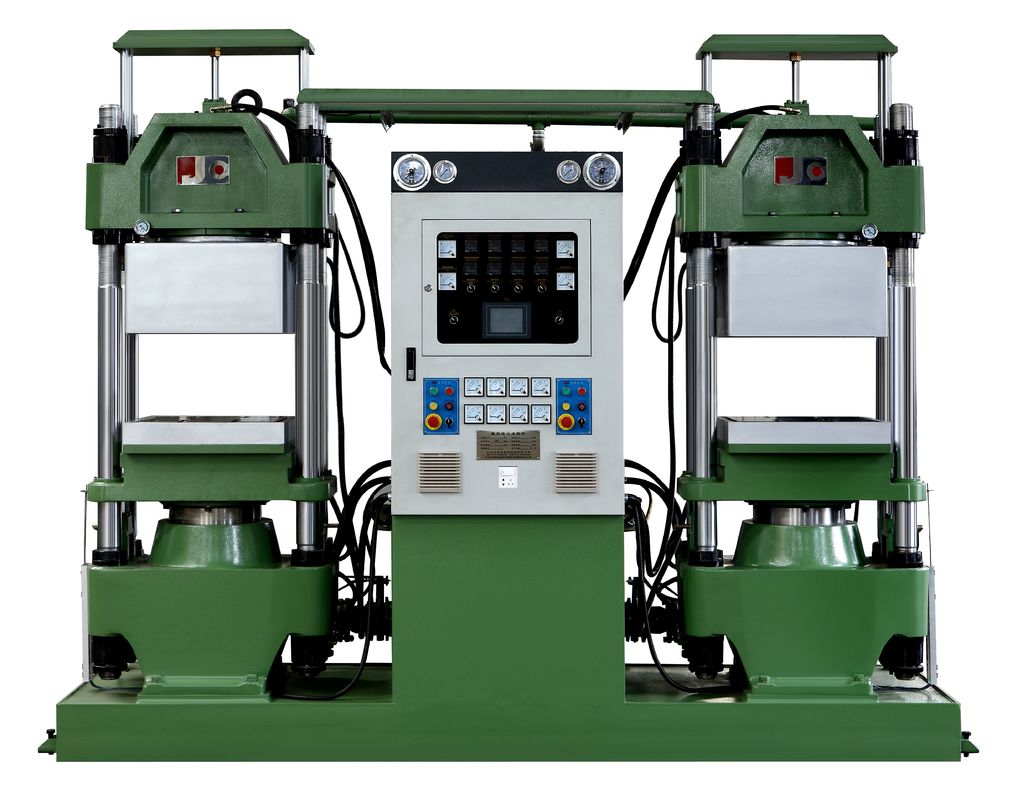

This vacuum type vulcanizing machine is specially developed for the production of butyl rubber stoppers/cover/caps/stopcock of injector.
Compared with normal vacuum compression moulding machine, this medical rubber cap vacuum compression machine is with enlarged piston stroke and bigger daylight opening distance,making it much easier for the operator to work.
| Clamping force (tonnage) | Main piston diameter (mm) | Platen size (mm) | Main piston stroke (mm) | Daylight opening (mm) | Power consumption (KW) |
| 200T | φ355 | 505x510 | 400 | 500 | 42.9 |
| 250T | φ400 | 570x610 | 400 | 500 | 48.3 |
| 350T | φ457.2 | 700x700 | 400 | 500 | 48.3 |
| 500T | φ560 | 850x850 | 500 | 600 | 80.5 |
