Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Pump, Valve | Machine Type: | Vacuum Vulcanizing Press |
| Voltage: | 220V/380V/460V | Dimension(L*W*H): | 4000x1500x3000mm |
| Weight: | 18500 | Warranty: | 1years |
| Power (kW): | 11KW | Key Selling Points: | Long Service Life |
| Showroom Location: | Turkey, Brazil, India, Malaysia | Applicable Industries: | Manufacturing Plant, Rubber Product Company |
| Port: | Shanghai |

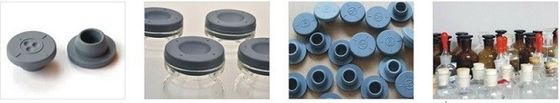

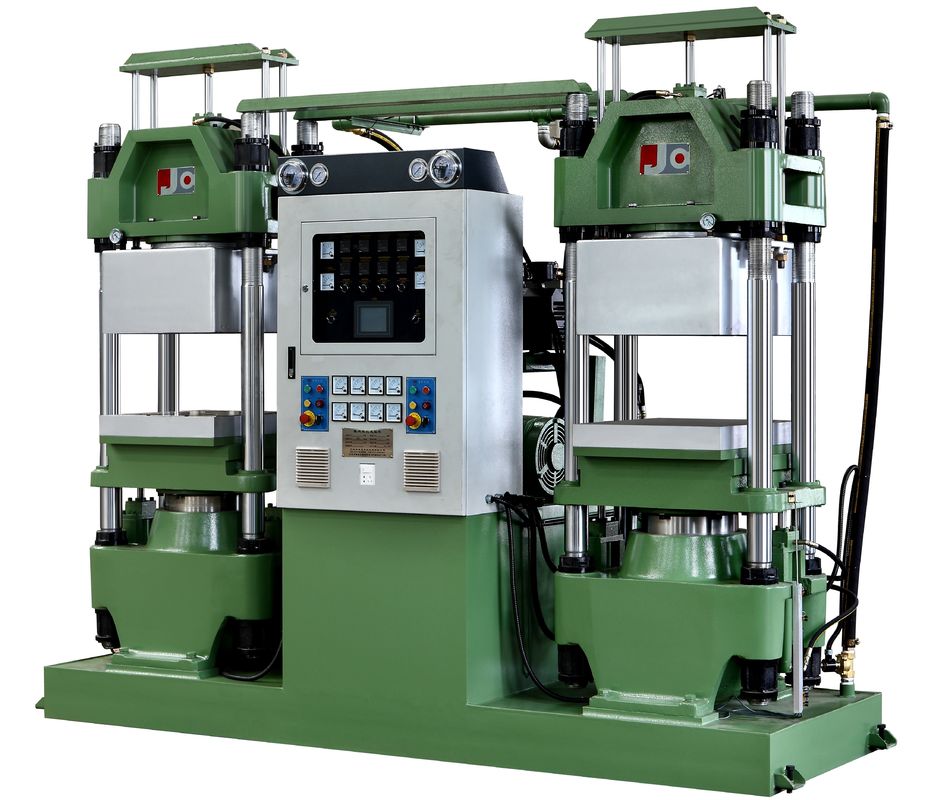

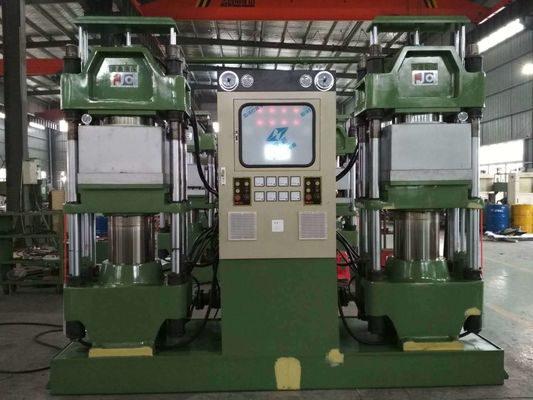

This Vacuum Compression Molding machine for Pharmaceutical Butyl Rubber stopper is specially developed for the production of butyl rubber stoppers/cover/caps/stopcock of injector.
Compared with normal vacuum compression moulding machine, Vacuum Compression Molding machine for Butyl Rubber stopper is with enlarged piston stroke and bigger daylight opening distance,making it much easier for the operator to work.
| Clamping force (tonnage) | Main piston diameter (mm) | Platen size (mm) | Main piston stroke (mm) | Daylight opening (mm) | Power consumption (KW) |
| 200T | φ355 | 505x510 | 400 | 500 | 42.9 |
| 250T | φ400 | 570x610 | 400 | 500 | 48.3 |
| 350T | φ457.2 | 700x700 | 400 | 500 | 48.3 |
| 500T | φ560 | 850x850 | 500 | 600 | 80.5 |
