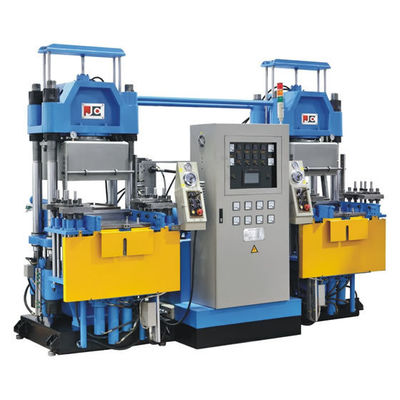

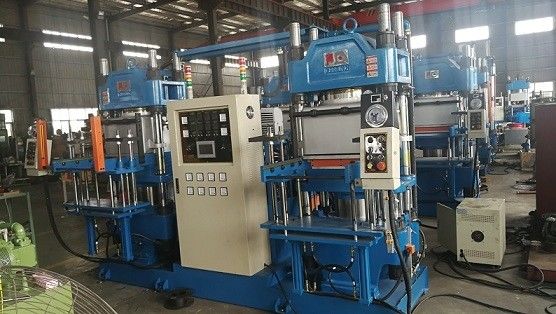

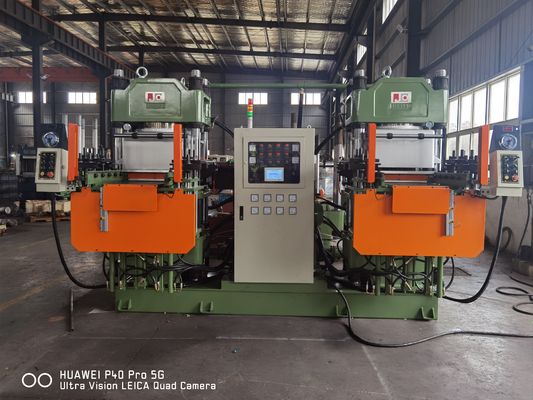

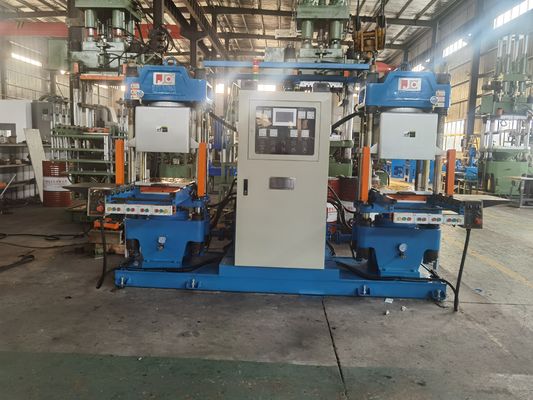

Vacuum Compression Moulding Machine for rubber o ring/rubber oil seal Competitive Price

1.The world-class brand vacuum pump &vacuum housing provide highly efficient vacuum suction effect for the entire mold inside the heating plate, making the rubber materials more dense and free of air,ensuring perfect final finished rubber products. Also because of enclosed vacuum chamber,the temperature is more well preserved and stable,saving heating energy and improve the curing performance.

2.Oil pressure & speed control system adopt optimized and advanced proportional pressure valve and proportional flow valve with loop circuit feedback control from PLC,realizing reliable and smooth "high speed-low speed "clamping operation.

3.The main components like the top base,middle base and cylinder body are all made of premium nodular cast iron,ensuring the durable high stability of the machine even after many years service,won't have the problem of deformation.

4.Parallelism precision of the hot plates is controlled within the tolerance of 0.03mm per 300mm² area.

5.The temperature tolerance of each point on the upper and lower plates is within ±2ºC. Auto PID temperature calibration.

6.Pre-heating function can be set on the HMI (touch screen).

7.Replacement time of lubricating oil can be set up from touch screen and auto alarm.

8.Time-counting for machine working time.Safety interlock for movement, fool-proof design. Automatic abnormal alarm function.

9.PLC monitor entire production,hundreds of production recipes can be stored and USB data transmission is convenient.  Remote Touch screen password setting.

10.Remote control system can provide more convenient after-sales service.Even the customers are far away in another country, our engineer can reach your control system to conduct necessary maintenance or update Vacuum Vulcanization Pressing Machine with the newest system.

11.Pressure protection design ensure the safe working of the machine.

12.Safety Photoelectric sensor device to prevent operators from potential injury.

13.Automatic retrieval of machine faults, automatic display of machine action positioning.

14.All hydraulic and electric control components for our rubber/silicone Vacuum Vulcanizing Pressing Machine adopts world-class famous brand.

15.Automatic mold handling systems are available for options, such as sliding plate, side air jig unit,molds turn open, bottom ejector,hydraulic core lifters,etc.Depends on your product structure, you can choose 2RT, 3RT or 4RT mold handling system to take out the final products automatically from the mold.

16.Single working station,double working stations or multi-stations are available for options.

17.Our machine is hydraulic-power-mechanics heavy duty structure design,whole machine is more stable operation, and also solid and durable.
