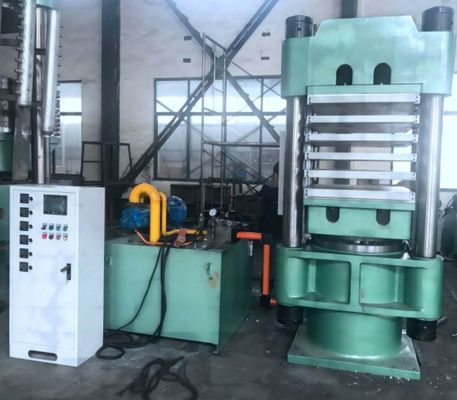

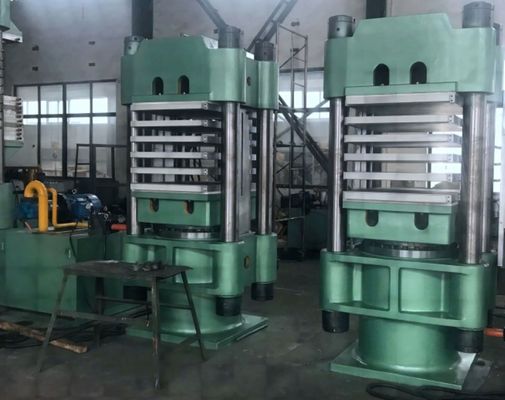

100T Four Column Multi Layer Molding Press Machine for 2611 cm Size Mold Big Capacity

Large Image : 100T Four Column Multi Layer Molding Press Machine for 2611 cm Size Mold Big Capacity

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Geekung

Payment & Shipping Terms:

Price:	$10,000.00/sets >=1 sets
Payment Terms:	T/T

Contact Now

100T Four Column Multi Layer Molding Press Machine for 2611 cm Size Mold Big Capacity

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Gearbox, Pressure Vessel, Pump	Machine Type:	Compression Machine
Voltage:	220V/380V/415V/440V/480V	Dimension(LWH):	3830x2450x2990
Weight:	13000	Warranty:	1 Year
Key Selling Points:	Famous Brand PLC	Showroom Location:	Turkey
Applicable Industries:	Manufacturing Plant	Color:	Custom Made
After-sales Service Provided:	Field Installation, Commissioning And Training	After Warranty Service:	Video Technical Support

Product Description

APPLICATIONS:

Ideal for the production of making rubber gaskets, O-rings, keyboards, medical stoppers, medical rubber products, seal, wipers scraping head, sports ,rubbe seals,etc.

REMARKABLE FEATURES:

· The vacuum suction hood provides highly efficient vacuum suction effect for the entire mold inside the working platen, suction speed of 700HG/2 sec. The unit offers simplified construction, easy to operate and maintain, with fast mold change.

· Integrated hydraulic circuit provide various pipe functions on the circuit boards, reducing piping to a minimum. The oil cooler ensures long service life of the circuit valve.

· The motion time, traverse and number of motions can be conveniently set on the control panel to meet product variations, ensuring production quality.

· Combines two molding units in one machine, which can be operated separately.

· While in vulcanization molding operations, the hydraulic pump motor can be set for running, or stopped for power saving.

· The electric system is controlled by the PLC controller, allowing for easy operation and accurate adjustment. An emergency switch provides added safety for the mold and the operator.

1,Rich experience in manufacturing industry well-known brands. Reasonable price, fast delivery, "began in customer requirements, and finally customer satisfaction".

2,Because various Kinds of model, in order to allow you to quickly find the most suitable product, you just contact us, we can help you meet your requirements recommended related products!

3,We provide you with products and services. We will also provide you with related products and services in the future, and you can enjoy your purchase all our products quality service.

4,Our plant have more than twenty years of production experience and history, the scale of our factory, product quality, production technology in the industry are at the forefront.

Specification

Model		YH-HV80T-2	YH-HV150T-2	YH-HL200T-2	YH-HV250T-2	YH-HV300T-2
Clamping Force	TON	80	150	200	250	300
Plate Size	mm	380×420	450×450	500×550	550×550	650×650
Piston Stroke	mm	380	345	380	380	380
Heating Capacity	kw	9	9	13.5	20.4	20.4
Pump Motor	kw	5.5	7.5	7.5	11	15
Piston Diameter	mm	230	356	495	406	430
Max Mold Size L×W×H	mm	340×380 ×180	410×410 ×120	510×510 ×200	510×510 ×200	610×610 ×175
Machine Dimensions	mm	2850×1625 ×2610	3150×1640×2550	3650×1800×3090	3650×1800×3090	3830×2450×2990
Machine Weight	kg	6500	7200	9300	11000	13000

Model		YH-HV80T	YH-HV150T	YM-HL200T	YM-HV250T	YM-HV300T	YM-HV400T	YM-HV600T
Clamping Force	TON	80	150	200	250	300	400	600
Plate Size	mm	380×420	450×450	500×550	500×550	650×650	800×800	1000×1000
Piston Stroke	mm	380	345	380	380	380	450	520
Heating Capacity	kw	9	9	13.5	20.4	20.4	24	42
Pump Motor	kw	4	5.5	7.5	11	15	15	18.5
Piston Diameter	mm	230	305	356	406	430	500	610
Max Mold Size L×W×H	mm	340×380 ×180	410×410 ×200	510×510 ×200	510×510 ×200	610×610 ×175	760×760 ×200	960×960 ×305
Machine Dimensions	mm	1720×1625 ×2610	1875×1640 ×2550	2120×1800 ×3090	2120×1800 ×3090	2210×2200 ×2990	2440×2190 ×3430	3100×2450 ×4060
Machine Weight	kg	3000	3200	5200	6200	6800	12500	14000
