Product Details:
|
| Condition: | New | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Dimension(L*W*H): | According To The Machine | Weight: | 12000 KG |
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Calendar Machine: | Two Roll Calender Machine | Power: | 55KW |
| Port: | Shanghai |

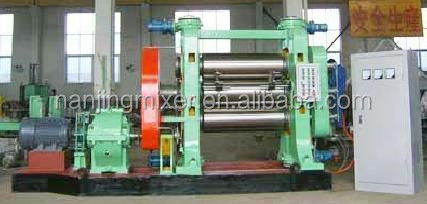

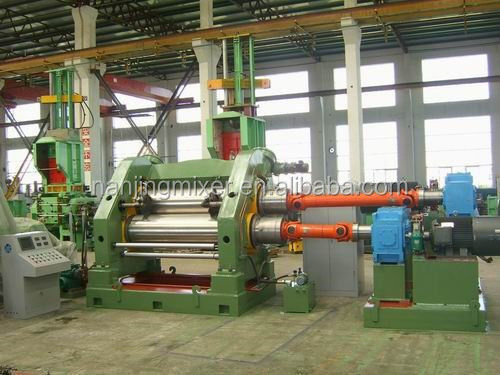

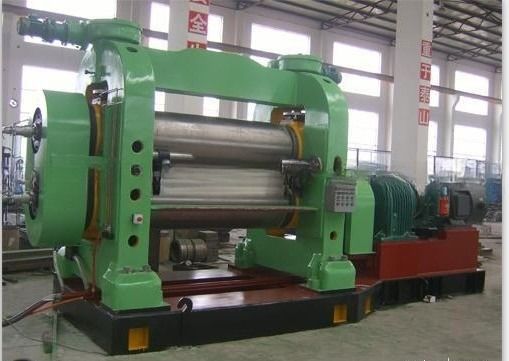

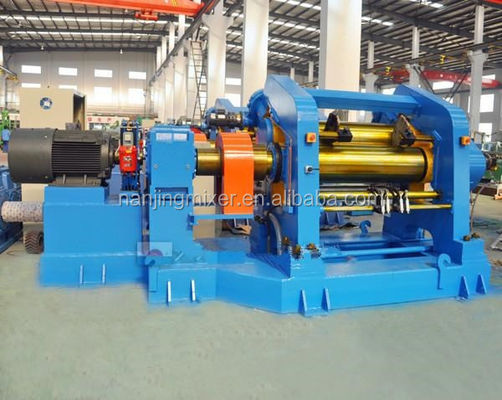

High Quality rubber Two Roll Calender/2 Roll Calender machine for fabric/tire/Rubber Sheet
Application:
The Two Roll Calendar Machine is mainly used for calendering from tire/conveyor belt/rubber sheet with
different width size .
Model and specification | Roll diameter x Length | Linear speedof front (m/min) | Thickness for calendering(mm) | Rolling width(mm) | Motor power(KW) | Weight(t) |
XY-2I1120 | 360x1120 | 1.5~15 | ≥0.20 | 900 | 40 | 8 |
XY-2I1400 | 400x1400 | 1.5~15 | ≥0.20 | 1200 | 55 | 12 |
XY-2I1600 | 560x1600 | 2~20 | ≥0.20 | 1400 | 75 | 25 |
XY-2I1730 | 610x1730 | 2~20 | ≥0.20 | 1500 | 90 | 45 |
XY-2I2030 | 660x2030 | 2~20 | ≥0.20 | 1800 | 110 | 80 |
XY-2I3000 | 820x3000 | 2~20 | ≥0.20 | 2800 | 110 | 158 |
We are the professional rubber machine producer and exporter,hope to have the opportunity to cooperate with you.
Tel: 86-025-52631617
