Product Details:
|
| Condition: | New | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Dimension(L*W*H): | According To The Machine | Warranty: | 12 Months |
| Key Selling Points: | Flexible Manufacturing | Applicable Industries: | Manufacturing Plant |
| After-sales Service Provided: | Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas | Type: | Rubber Calender |
| Rubber Calender: | 3 Roll Ruber Calender | Power: | 75KW |
| Weight: | 25200 KG | Port: | Shanghai |

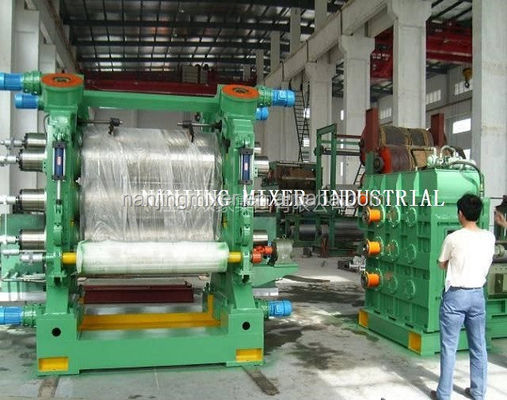

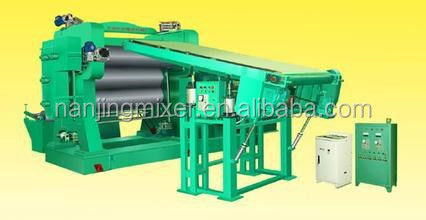

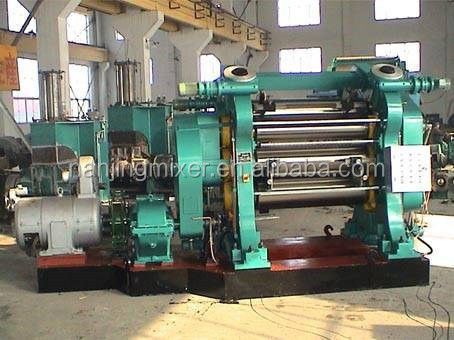

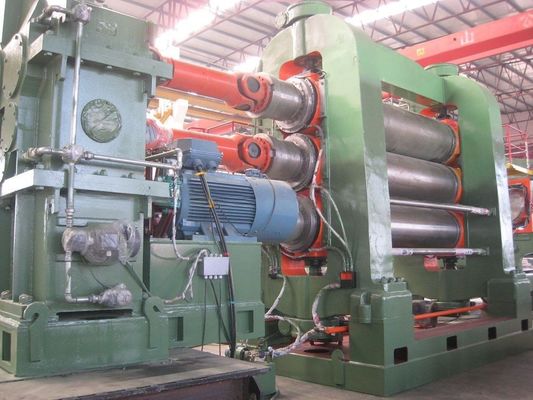

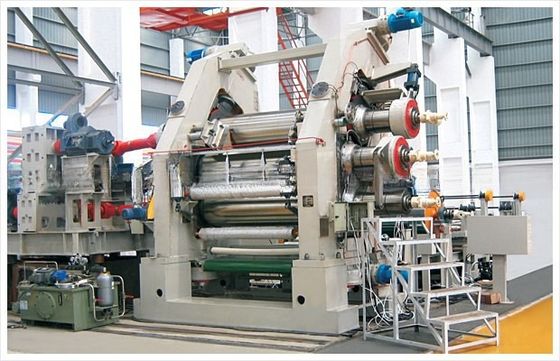

High Quality 3 rolls rubber calender machine /Three roller Calendar Machine for making rubber coating /rubber sheet
Application: This three rolls calender is mainly used for single-face continuous coating rubber sheet of cord thread , fabric , other woven material . or calendering pure rubber sheet for
tire inner liner. Structure features 1.Roll is made of chilled cast iron alloy, coldgrinding surface , hard and wearable ;drilled on roll circumference, getting good heating and cooling effects. 2.Single motor drives each calendaring roll of three calender ,at two ends of which have friction gears, may regulate speed ratio
by pulling key so as to meeting different processes. 3.For guaranteeing calendered product accuracy , provide axis cross device, pull-back device and pre-bending device for rolls. 4.Having emergency stop on machine for protecting operators and equipment. 5.DC motor drive ,taking digital speed regulating device as driver, to guarantee the stability of output torque.
Model | Roller dia.×Length(mm) | Mid-roller liner Speed(m/min) | Thickness for calendering(mm) | Calendering width(mm) | Motor power(kW) | Overall dimension(L×W×H)(mm) | Weight(t) |
XY-3I(F)1120 | 360x1120 | 7.5~22.5 | ≥0.20 | 900 | 40 | 6050x1660x2330 | 11.6 |
XY-3I(F)1400 | 400x1400 | 8.8~26.39 | ≥0.20 | 1200 | 55 | 5600x1410x2385 | 15 |
XY-3I(F)1450 | 450x1450 | 2.5~25 | ≥0.20 | 1225 | 75 | 5850x1920x2870 | 25.2 |
XY-3I(F)1600 | 510x1600 | 2.5~25 | ≥0.20 | 800 | 37x4 | 6025x3300x3800 | 30 |
XY-3I(F)1730 | 610x1730 | 4.5~45 | ≥0.20 | 800 | 37x4 | 6025x3300x3800 | 33 |
XY-3F2540 | 820x2540 | 3~30 | ≥0.20 | 2200 | 75x2 90x2 | 10195x3340x5820 | 133 |
XY-3F3400A | 900x3400 | 3~35 | ≥0.20 | 3100 | 160 | 7900x4500x5680 | 102 |
We are the professional rubber machines producer and exporter,welcome to contact us .
Tel: 86-025-52631617
