Product Details:
|
| Condition: | New | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Weight: | 35 Ton | Warranty: | 1 Year |
| After-sales Service Provided: | Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas | Rubber Calender: | Rubber Conveyor Belt Calender |
| Power: | 75KW | Port: | Shanghai |

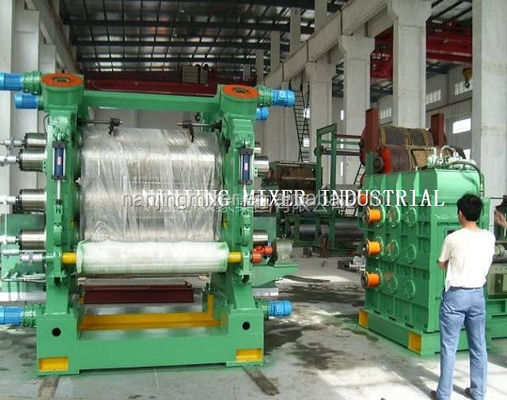

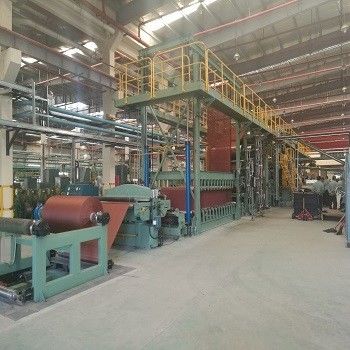

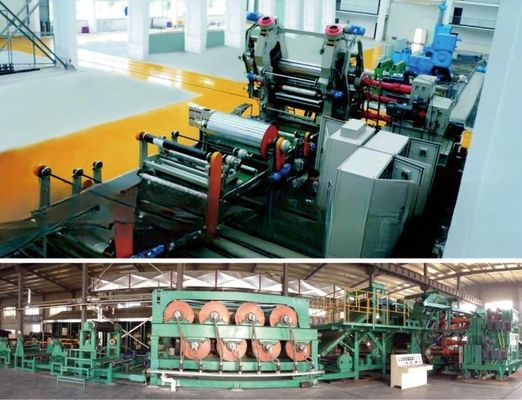

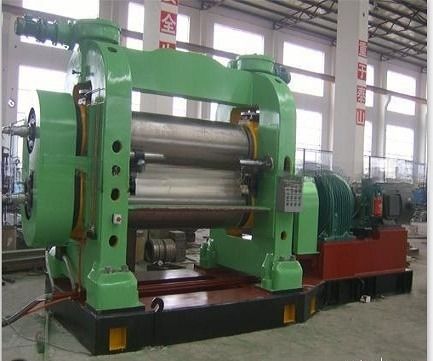

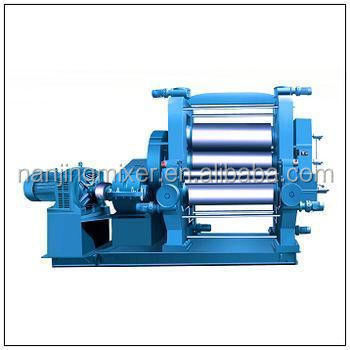

Rubber Calender for Producing Rubber Conveyor belt/ Rubber Conveyor Belt Calendering production line :
Application:
The rubber conveyor belt calender production line is used for continuous production or interrupted production of calendering for conveyor belt core,double sides rubber coating of canvas and rubber sheet.
Specification Type | Roller dia.×Length | Mid-rollerlinerSpeed(m/min) | Thickness forcalendering(mm) | Calenderingwid(mm) | Motor power(KW) | Overalldimension(LxWxH)(mm) | Weight(t) |
XY-3F1520 | 560x1520 | 1.5~15 | ≥0.20 | 1200 | 75 | 6730x2130x3595 | 35 |
XY-3F1830 | 610x1730 | 4.5~45 | ≥0.20 | 1500 | 55x3 | 8040x2700x4570 | 48 |
XY-3F2540 | 820x2540 | 3~30 | ≥0.20 | 2300 | 400 | 10195x3340x5820 | 132.6 |
XY-3F3400 | 900x3400 | 4~40 | ≥0.20 | 3200 | 160 | 7900x4500x5680 | 102 |
XY-4Γ1600 | 560x1600 | 3.5~30 | ≥0.20 | 1400 | 144 | 6270x2960x4100 | 62 |
XY-4S1730 | 610x1730 | 4~40 | ≥0.20 | 1500 | 330 | 8010x4738x4837 | 95 |
XY-4S2030 | 660x2030 | 4~40 | ≥0.20 | 1800 | 440 | 8850x5080x5210 | 101 |
XY-4S2130 | 710x2300 | 4~40 | ≥0.20 | 2000 | 132x4 | 8850x5050x5210 | 105 |
XY-4S2500 | 760x2500 | 4~40 | ≥0.20 | 2200 | 160x4 | 12280x6500x5900 | 108 |
XY-4S2540 | 820x2540 | 4~40 | ≥0.20 | 2200 | 584 | 50530x12500x9050 | 112 |
XY-4S2800 | 900x2800 | 4~40 | ≥0.20 | 2400 | 720 | 40530x13000x9350 | 118 |
Nanjing Mixer Industrial Co., Ltd is the producer and exporter rubber machines,hope to have this oppotunity to serve you,welcome to visit us.
Tel: 86-025-52631617
