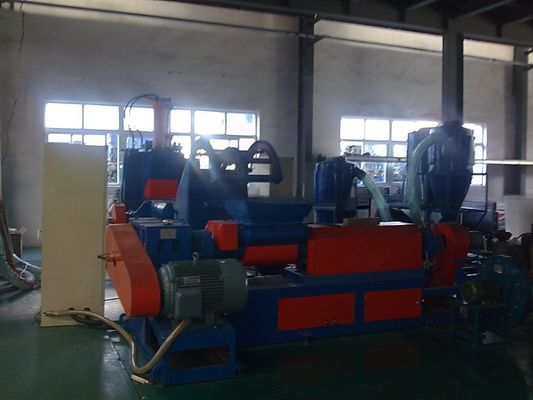

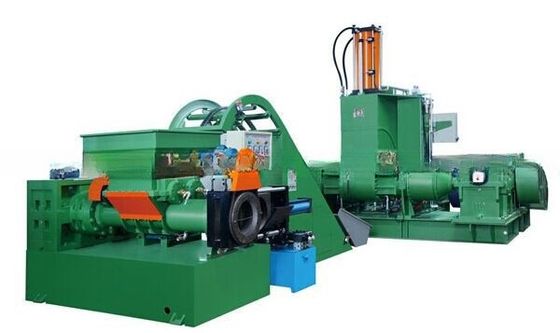

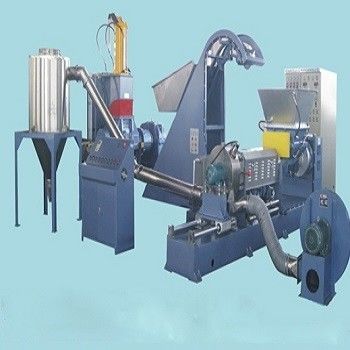

17000 KG Capacity PE/PP/EVA Compounding/Pelletizing Plant with High Talc/Caco3 Filler

Large Image : 17000 KG Capacity PE/PP/EVA Compounding/Pelletizing Plant with High Talc/Caco3 Filler

Product Details:

Place of Origin:	China
Brand Name:	Mixer
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$50,000.00 - $100,000.00/sets
Packaging Details:	film wrap into container
Delivery Time:	60days
Payment Terms:	T/T
Supply Ability:	60DAYS

Contact Now

17000 KG Capacity PE/PP/EVA Compounding/Pelletizing Plant with High Talc/Caco3 Filler

Description

Plastic Processed:	HDPE/PP, PE/PP, PP, LDPE	Condition:	New
Output (kg/h):	400 - 600	Type:	Granulating Production Line
Screw Design:	Single	Voltage:	380V,220V,480V
Dimension(LWH):	1500x220x320 Cm	Power (kW):	200
Weight:	17000 KG	Warranty:	1 Year
Showroom Location:	Turkey	Applicable Industries:	Manufacturing Plant
After-sales Service Provided:	Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas	After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:	Turkey	Application:	EVA/TPR/PP/PE
Material:	EVA/TPR/PP/PE	Capacity:	400-600 KG/H
Power:	200KW	Port:	Shanghai

Product Description

HIGH SPEED PE/PP/EVA with high Talc powder/Caco3 filler Compouding/Pelletizing Plant :

The high speed compound extruder production line is ideal for making master batches & Compounding PP,PVC TPR,EVA , low smoke zero halogen (LSZH) cable materials, ABS, LDPE, HLDPE, etc. You can use the master batches & Compounding for making: Shopping & Carrier bags, Woven Sack Multilayer Films, Water Tanks PE & PVC Cables, PVC Shoes, Cing Film, Anti Block P.P etc.

The production line combines materials mixing, conveying, feeding, extrusion granulation, water circulation cooling and air cooling sending as a whole line, automated continuous operation, the high effective production. Frequency converter used to control the rate of granulation to meet the speed of material requirements and savings power function.

Compact structure, occupies little space and can be installed flat.

Production sub-loop temperature control process, dispersion kneader, feeder, extrusion machine has its own heating and cooling system, control their temperature, according to process requirements. Feeding machine is of double screw propeller extrusion feeder, with the feature of strong material feeding, especially suitable for extrusion and granulation of mixed compound directly from kneader.

Barrel screw use 38CrMoAlA quality alloy steel, nit riding treatment, high hardness, wear resistance to corrosion.

Machine head adopt manually net changing organization, easy to operate.

Electronic control system uses advanced PLC control technology, and two inverters form, then mixing, feed, extrusion, palletizing and other multi-process machine according to the requirements of high accuracy, wide variable speed. And the line has the whole chain of machine technology, sound and light alarm functions; improve the reliability and safe operation. Granules palletized from this line are with the features of beautiful appearance, fine texture, well distributed.

Technical spefictionation:

Model	MD-100/35L	MD-120/55L	MD-130/75L	MD-165/110L	MD-200/110L
Extrusion capacity(KG/H)	150-200	200-300	400-600	500-800	600-1000
Screw Diameter	100mm	120mm	130mm	165mm	200mm
Screw L/D ration	12,16,20	12,16,20	12,16,20	12,16,20	12,16,20
Extruder motor (KW)	37	45	55	75/90	110/160
Temperature control stages	4	4	4	4	4
Feeding power(KW)	5.5	7.5	7.5	7.5/11	11
Die cutting power(KW)	2.2	2.2	2.2	2.2	2.2
Cooling system power(KW)	3	3	5.5	7.5	11
Vibrator sieve diameter (mm)	2.5/3	2.5/3	2.5/3	2.5/3	2.5/3
Spin drier motor (KW)	7.5	7.5	7.5	7.5	11
Hopper	1000L	1000L	1000L	1500L	2000L
Kneader model	X(S)N-35L	X(S)N-55L	X(S)N-75L	X(S)N-110L	X(S)N-110L
