Product Details:
|
| Condition: | New | Plastic Processed: | PE, PP |
|---|---|---|---|
| Voltage: | 220V/380V/415V/440V/480V | Dimension(L*W*H): | 1850*700*1900mm |
| Warranty: | 1 Year | Blow Moulding Type: | Extrusion Blow Moulding |
| Automatic: | Yes | After-sales Service Provided: | Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support |
| Power: | 2.2KW | Weight: | 350 Kg |
| Port: | Shanghai |

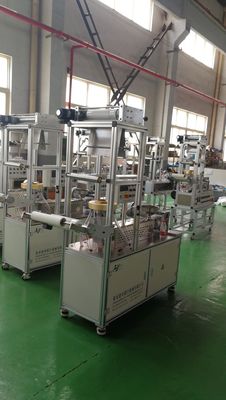

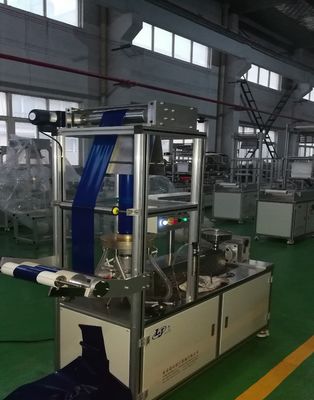

This Lab film blowing machine for PE (table and vertical model) is suitable for the scientific institution, the college and the production factory lab, also can be used for small production.
Product introduction |
|
1.Description of goods | Lab film blowing machine |
2.Model | LJSCM25 |
3.category | Film blowing |
4.Dimension(LxWxH) | 1850*700*1900mm |
5.Weight | 350 KGS |
|
|
Using condition |
|
Power supply | 220V, Singl phase, 50HZ |
Plastic raw materials | PE |
Film blowing width | 100-150mm |
Capacity | 0.5-2.0kg/h |
film thickness | 0.01-0.10mm |
total power | 6KW |
Control mode | Instrument meter |
Main parts specification: | |
1. SJ25/30 single screw extruder | |
screw diameter | Φ25mm |
L/D | 30:1 |
Barrel screw material | 38CrMoAlA |
Nitriding depth | 0.4-0.7mm |
Surface hardness | HV940~1050 |
screw surface treatment | hard chrome platen |
screw structure | Double-channel mixing section--special screw structure to enhance plasticization |
Barrel heating way | Electric heating |
Screw speed | 10-60rpm |
Motor power | 2200W |
Speed control | speed adjustable by VFD |
temperature control zones of barrel | 3 zones |
2. Mould |
|
blowing type | mould facing upward |
mould diameter | Φ30mm |
mould structure | helical structure |
Flow channel treatment | internal and external chrome plating - polishing |
heating way | Electric heating |
3.Blowing part |
|
blowing width | 100--150mm |
Traction Roller diameter | Φ 85mm |
Traction Roller length | 300mm |
drive roller | chromed roller |
Passive roller | Rubber roller |
Traction Roller drive | independent drive |
Traction motor | JSCC(German brand) |
VFD | JSCC(German brand) |
Traction reducer | High precision gearbox --JSCC(German brand) |
4. Rolling device |
|
Roller type | Friction rolling |
Friction roller | static-free roller |
winder motor | Variable frequency motor |
Motor brand | JSCC(German brand) |
Speed control | speed adjustable by VFD --JSCC(German brand) |
