Product Details:
|
| Condition: | New | Automatic Grade: | Semi-automatic |
|---|---|---|---|
| Voltage: | 220V/380V/415V/440V/480V | Warranty: | 1 Year |
| Applicable Industries: | Manufacturing Plant | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support |
| Power: | 30/42 | Port: | Shanghai |
Main Application:

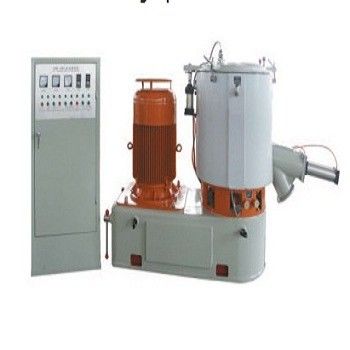

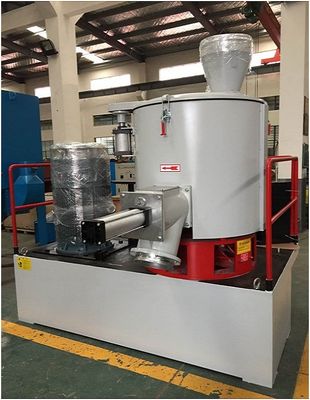

This high speed mixer (heating type) is mainly composed of chamber (mixing room),blade,drive device,base and control panel ,etc. It is widely used in drying or mixing of plastic polymer&powder,rubber granules,dyestuffs,foodstuff,chemicals,CaCo3,etc.
Technical specification:
Model | Total Volume (Liter) | Effective Capacity (Liter) | Motor Power (KW) | Main Shaft Speed (RPM) | Discharge Method | Heating Method |
SHR-5A | 5 | 3 | 1.2 | 1400 |
Manual |
Electric Heating |
SHR-10A | 10 | 7 | 3 | 2000 | ||
SHR-25A | 25 | 18 | 5.5 | 1750 |
Pneumatic Control | |
SHR-50A | 50 | 35 | 7/11 | 750/1500 | ||
SHR-100A | 100 | 70 | 14/22 | 650/1300 | ||
SHR-200A | 200 | 140 | 30/42 | 550/1100 | ||
SHR-300A | 300 | 210 | 40/55 | 475/950 | ||
SHR-500A | 500 | 350 | 47/67 | 430/860 | ||
SHR-800A | 800 | 560 | 60/90 | 370/740 | ||
SHR-1000A | 1000 | 700 | 83/110 | 320/640 |
