Product Details:
|
| Condition: | New | Plastic Processed: | PE/PET/PP/ABS |
|---|---|---|---|
| Application: | Sheet | Screw Design: | Single-screw |
| Voltage: | 220V/380V/415V/440V | Weight: | 200*700*150cm |
| Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support |
| Power: | 2.2KW | Port: | Shanghai |

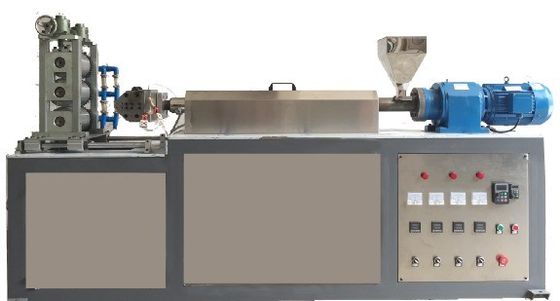

Lab Extrusion film/sheet calendering machine for PET/PE/ABS/PS/PC
Application:
1. material modification testing,R&D of polymer and new materials in school or institution.
2. Test the "color distribution" and "plasticization" of masterbatch and the efficacy of plastic additives by means of sheet extrusion molding.
3.Sampling production.
4. Functional masterbatch manufacturers, testing their product function masterbatch performance (eg: conductive masterbatch)

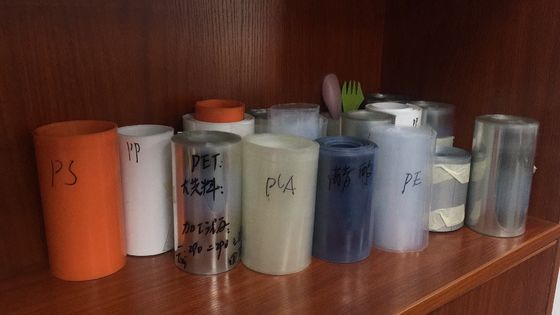

5.Applicable materials: PE PP PS ABS PC PLA
Main motor: 2.2KW
Traction motor:0.75KW
Inverter for the main motor: 2.2KW
Inverter for traction motor:0.75KW
Voltage: 220V/380V/415V/440V/480V,50HZ/60HZ as per customer’s request
Screw diameter:30mm (chrome platen treatment after deep nitriding )
L/D:32:1
Toal power consumption:8KW
Screen changing device: Manual

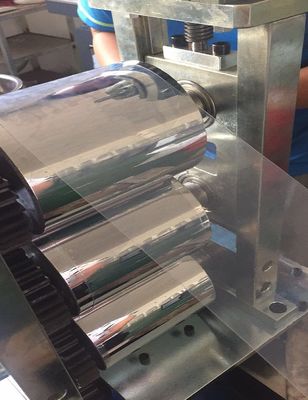

Pressing Calender: 3 rolls (rolls can be water cooling or oil heating)
Sheet size:
Max. sheet thickness: 1.2mm
Min. sheet thickness: 15 microns (depends on actual materials)
Max.sheet width:120mm
