Product Details:
|
| Plastic Processed: | HDPE, HDPE/PP, PA, PE/PP, ABS/PP, PP, FRPP/PVC, PVC, EVA, PC | Condition: | New |
|---|---|---|---|
| Output (kg/h): | 200 - 250 Kg/h | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Motor, Pressure Vessel | Type: | Granulating Production Line |
| Screw Design: | Single | Voltage: | 380V/220V/415/440V |
| Dimension(L*W*H): | As Model | Power (kW): | 110 |
| Weight: | 13000 | Warranty: | 1 Year |
| Showroom Location: | None | Applicable Industries: | Manufacturing Plant |
| Material: | EVA/TPR/PP/PE/PVC/Filler Masterbatch | Application: | EVA/TPR/PP/PE/Masterbatch |
| After-sales Service Provided: | Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support |
| Marketing Type: | Ordinary Product |

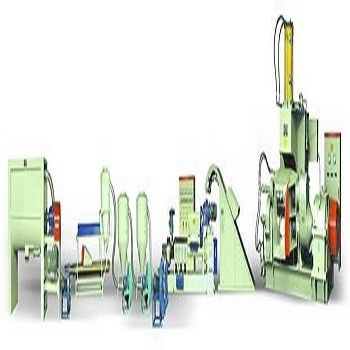

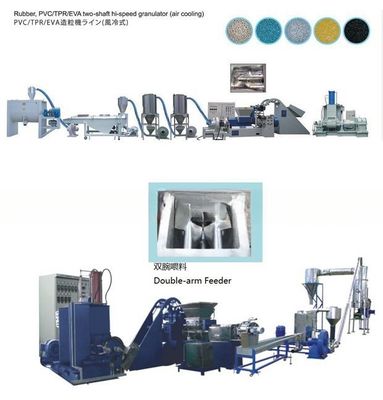

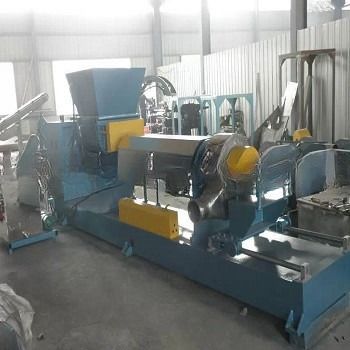

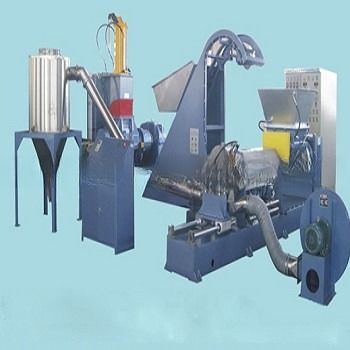

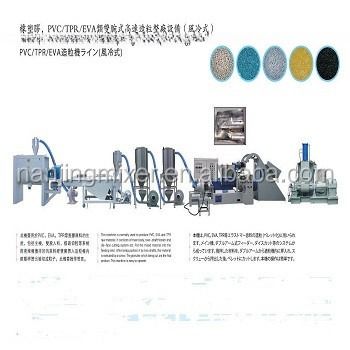

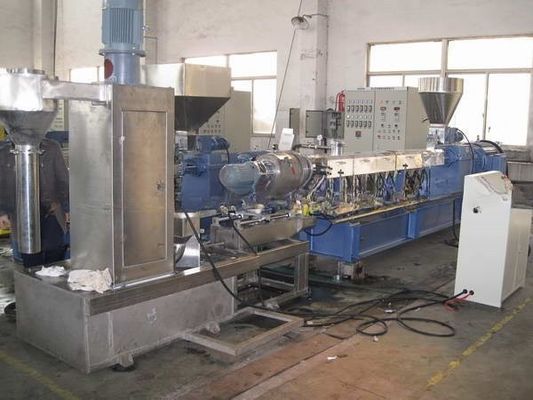

EVA/TPR Extruder Machine/ The extruder line to make EVA/TPR Compound :
Technical spefictionation:
| Model | MD-100/35L | MD-120/55L | MD-130/75L | MD-165/110L | MD-200/110L |
| Extrusion capacity(KG/H) | 150-200 | 200-300 | 400-600 | 500-800 | 600-1000 |
| Screw Diameter | 100mm | 120mm | 130mm | 165mm | 200mm |
| Screw L/D ration | 12,16,20 | 12,16,20 | 12,16,20 | 12,16,20 | 12,16,20 |
| Extruder motor (KW) | 37 | 45 | 55 | 75/90 | 110/160 |
| Temperature control stages | 4 | 4 | 4 | 4 | 4 |
| Feeding power(KW) | 5.5 | 7.5 | 7.5 | 7.5/11 | 11 |
| Die cutting power(KW) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| Cooling system power(KW) | 3 | 3 | 5.5 | 7.5 | 11 |
| Vibrator sieve diameter (mm) | 2.5/3 | 2.5/3 | 2.5/3 | 2.5/3 | 2.5/3 |
| Spin drier motor (KW) | 7.5 | 7.5 | 7.5 | 7.5 | 11 |
| Hopper | 1000L | 1000L | 1000L | 1500L | 2000L |
| Kneader model | X(S)N-35L | X(S)N-55L | X(S)N-75L | X(S)N-110L | X(S)N-110L |
Our EVA/TPR Extruder Machine/ The extruder line to make EVA/TPR Compound is the best choice for your need,welcome to contact us.
