200KW Virgin Plastic Industry Granulator for EVA/TPR/PP/PE Masterbatch Production

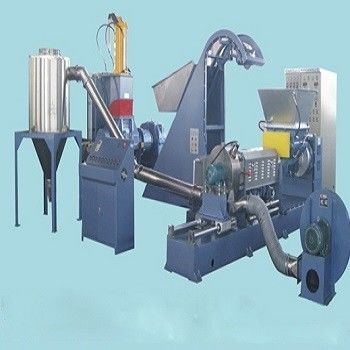

Large Image : 200KW Virgin Plastic Industry Granulator for EVA/TPR/PP/PE Masterbatch Production

Product Details:

Place of Origin:	China
Brand Name:	Mixer

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$10,000.00/sets >=1 sets
Packaging Details:	film wrap into container
Delivery Time:	60days
Payment Terms:	T/T
Supply Ability:	60DAYS

Contact Now

200KW Virgin Plastic Industry Granulator for EVA/TPR/PP/PE Masterbatch Production

Description

Plastic Processed:	HDPE, HDPE/PP, PE/PP, ABS/PP, Wood-plastic, PP, FRPP/PVC, LDPE, EVA	Condition:	New
Output (kg/h):	200 - 400 Kg/h	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Warranty Of Core Components:	2 Years
Core Components:	PLC, Engine, Gear, Pump	Type:	Granulating Production Line
Screw Design:	Single	Voltage:	380V,220V,480V
Dimension(LWH):	1500x220x320 Cm	Power (kW):	55
Weight:	17000	Warranty:	1 Year After Shipment
Showroom Location:	None	Applicable Industries:	Manufacturing Plant
Application:	EVA/TPR/PP/PE/Masterbatch	Material:	EVA/TPR/PP/PE
Capacity:	400-600 KG/H	Power:	200KW
After Warranty Service:	Video Technical Support	Marketing Type:	New Product 2019
Port:	Shanghai

Product Description

plastic granulation/granulator/granule/machine

The high speed compound extruder production line is ideal for making EVA granules,master batches & Compounding PP/PE,PVC TPR, low smoke zero halogen (LSZH) cable materials, ABS, LDPE, HLDPE, etc. You can use the master batches & Compounding for making: Shopping & Carrier bags, Woven Sack Multilayer Films, Water Tanks PE & PVC Cables, PVC Shoes, Cing Film, Anti Block P.P etc.

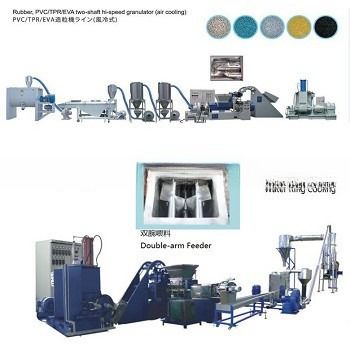

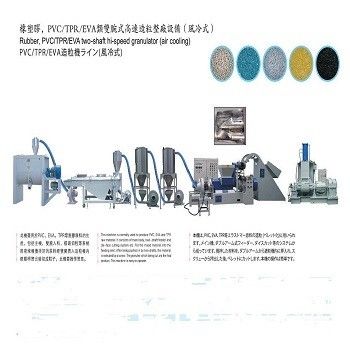

The production line combines materials mixing, conveying, feeding, extrusion granulation, water circulation cooling and air cooling sending as a whole line, automated continuous operation, the high effective production. Frequency converter used to control the rate of granulation to meet the speed of material requirements and savings power function.

Compact structure, occupies little space and can be installed flat.

Production sub-loop temperature control process, dispersion kneader, feeder, extrusion machine has its own heating and cooling system, control their temperature, according to process requirements. Feeding machine is of double screw propeller extrusion feeder, with the feature of strong material feeding, especially suitable for extrusion and granulation of mixed compound directly from kneader.

Barrel screw use 38CrMoAlA quality alloy steel, nit riding treatment, high hardness, wear resistance to corrosion.

Machine head adopt manually net changing organization, easy to operate.

Electronic control system uses advanced PLC control technology, and two inverters form, then mixing, feed, extrusion, palletizing and other multi-process machine according to the requirements of high accuracy, wide variable speed. And the line has the whole chain of machine technology, sound and light alarm functions; improve the reliability and safe operation. Granules palletized from this line are with the features of beautiful appearance, fine texture, well distributed.

Technical spefictionation:

Model	MD-100/35L	MD-120/55L	MD-130/75L	MD-165/110L	MD-200/110L
Extrusion capacity(KG/H)	150-200	200-300	400-600	500-800	600-1000
Screw Diameter	100mm	120mm	130mm	165mm	200mm
Screw L/D ration	12,16,20	12,16,20	12,16,20	12,16,20	12,16,20
Extruder motor (KW)	37	45	55	75/90	110/160
Temperature control stages	4	4	4	4	4
Feeding power(KW)	5.5	7.5	7.5	7.5/11	11
Die cutting power(KW)	2.2	2.2	2.2	2.2	2.2
Cooling system power(KW)	3	3	5.5	7.5	11
Vibrator sieve diameter (mm)	2.5/3	2.5/3	2.5/3	2.5/3	2.5/3
Spin drier motor (KW)	7.5	7.5	7.5	7.5	11
Hopper	1000L	1000L	1000L	1500L	2000L
Kneader model	X(S)N-35L	X(S)N-55L	X(S)N-75L	X(S)N-110L	X(S)N-110L
