Product Details:
|
| Mixer Type: | Paddle | Max. Loading Capacity: | 300L |
|---|---|---|---|
| Condition: | New | Product Type: | Other |
| Application: | CMC | Additional Capabilities: | Other |
| Voltage: | 380V | Dimension(L*W*H): | According To The Type |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| CMC: | CMC Sigma Kneader | Power: | 11-18.5KW |
| Port: | Shanghai |

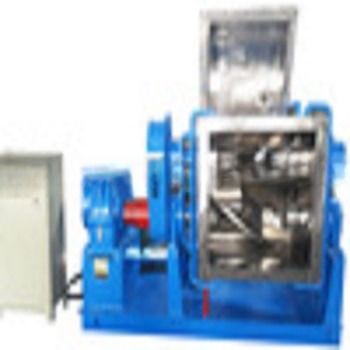

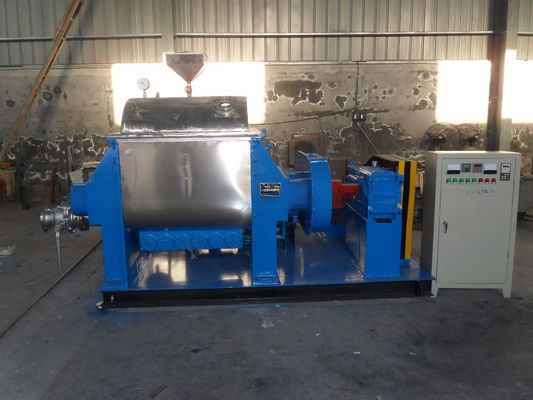

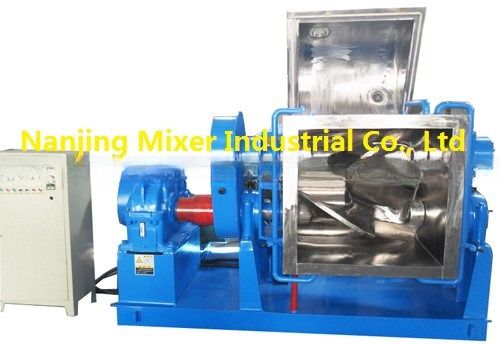

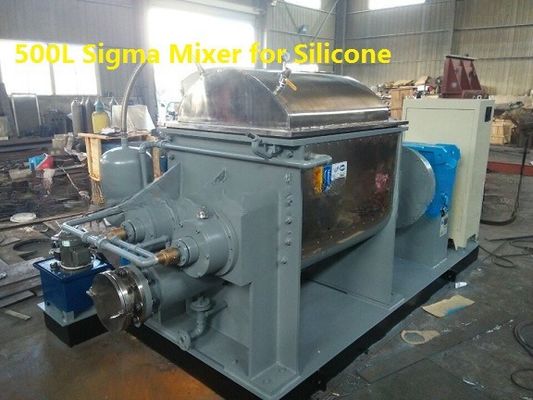

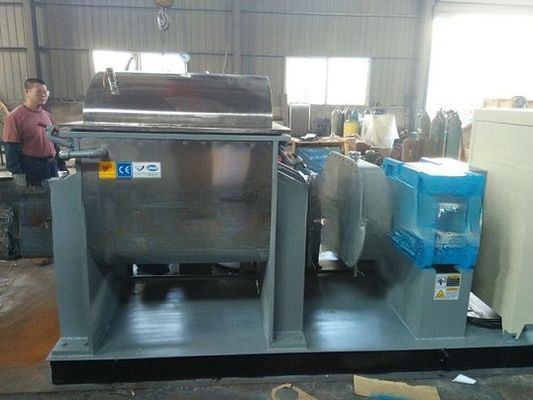

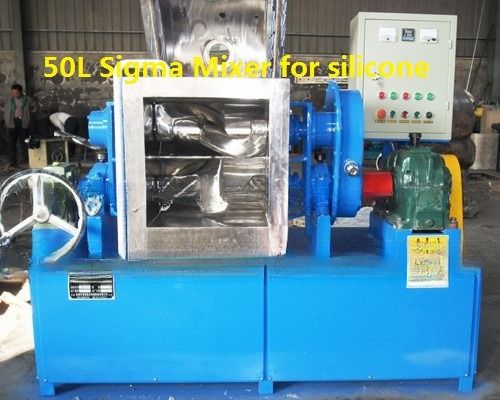

Double sigma mixer/sigma mixer kneader/laboratory mixer sigma
Sigma Kneader/Sigma Mixer is widely used for:, plastic, rubber, silicone,chemical,CMC,BMC, soap,paint, printing ink, basoid, carbon, food stuff, medicine etc, Mixing room and agitating rotor are all made by stainless steel, The jacket of mixing room can be designed into electric heating, steam heating, steam heating or water cooling. Discharge ways include hydraulic tilt,, screw extruder and botton valve discharge etc.
Standard Sigma Kneader:
Model | Total Volume(L) | Working Volume(L) | Motor Power (KW) | Discharge way | Heating mode |
NH - 50 | 50 | 30 | 2.2 ~ 4 | Hydraulic tilt | Steam/hot water |
NH - 100 | 100 | 60 | 3 ~ 5.5 | Hydraulic tilt | Steam/hot water |
NH - 200 | 200 | 120 | 5.5 ~ 7.5 | Hydraulic tilt | Steam/hot water |
NH - 300 | 300 | 180 | 7.5 ~ 11 | Hydraulic tilt/bottom drop | Steam/hot water |
NH - 500 | 500 | 300 | 11 ~ 18.5 | Hydraulic tilt/bottom drop | Steam/hot water |
NH - 1000 | 1000 | 600 | 18.5 ~ 30 | Hydraulic tilt/bottom drop | Steam/hot water |
NH - 1500 | 1500 | 900 | 22~37 | Hydraulic tilt/bottom drop | Steam/hot water |
NH - 2000 | 2000 | 1200 | 37~55 | Hydraulic tilt/bottom drop | Steam/hot water |
NH - 3000 | 3000 | 1800 | 55~90 | Hydraulic tilt/bottom drop | Steam/hot water |
NH - 4000 | 4000 | 2400 | 75~110 | Hydraulic tilt/bottom drop | Steam/hot water |
NH - 5000 | 5000 | 3000 | 90~132 | Hydraulic tilt/bottom drop | Steam/hot water |
NH - 6000 | 6000 | 3600 | 132~160 | Hydraulic tilt/bottom drop | Steam/hot water |
Vacuum Sigma Kneader:
Model | Total Volume(L) | Working Volume(L) | Motor Power (KW) | Discharge way | Heating mode |
NHZ - 50 | 50 | 30 | 4 ~ 5.5 | Hydraulic tilt | Electric/steam |
NHZ - 100 | 100 | 60 | 5.5 ~ 7.5 | Hydraulic tilt | Electric/steam |
NHZ - 200 | 200 | 120 | 7.5 ~ 11 | Hydraulic tilt | Electric/steam |
NHZ - 300 | 300 | 180 | 11 ~ 15 | Hydraulic tilt/bottom drop | Electric/steam |
NHZ - 500 | 500 | 300 | 15 ~ 30 | Hydraulic tilt/bottom drop | Electric/steam |
NHZ - 1000 | 1000 | 600 | 37 ~ 55 | Hydraulic tilt/bottom drop | Electric/steam |
NHZ - 1500 | 1500 | 900 | 55 | Hydraulic tilt/bottom drop | Electric/steam |
NHZ - 2000 | 2000 | 1200 | 75 ~ 90 | Hydraulic tilt/bottom drop | Electric/steam |
NHZ - 3000 | 3000 | 1800 | 90 ~ 110 | Hydraulic tilt/bottom drop | Electric/steam |
NHZ - 4000 | 4000 | 2400 | 132 ~ 160 | Hydraulic tilt/bottom drop | Electric/steam |
