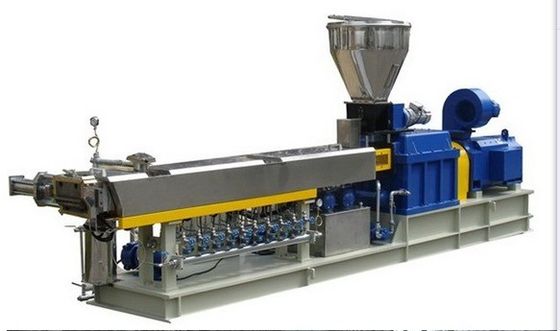

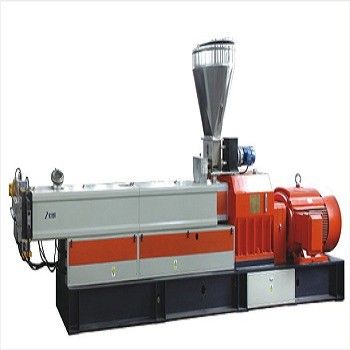

TPR and EVA Co-rotating Parallel Twin-screw Pelletizing Plant with Double-screw Design

Large Image : TPR and EVA Co-rotating Parallel Twin-screw Pelletizing Plant with Double-screw Design

Product Details:

Place of Origin:	China
Brand Name:	Mixer

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$18,000.00/sets >=1 sets
Packaging Details:	film wrap into container
Delivery Time:	60days
Payment Terms:	T/T
Supply Ability:	60DAYS

Contact Now

TPR and EVA Co-rotating Parallel Twin-screw Pelletizing Plant with Double-screw Design

Description

Condition:	New	Plastic Processed:	PE, PP, ABS, EVA, HDPE, HDPE/PP, PE/PP, Other
Application:	Granules, Pelletizing	Screw Design:	Double-screw
Twin Screw Type:	Co-rotating Parallel Twin-screw	Screw Material:	38CrMoALA
Screw Diameter (mm):	62.4 Mm	Screw L/D Ratio:	32:60
Screw Speed (rpm):	600 Rpm	Showroom Location:	None
Voltage:	380V	Dimension(LWH):	According To Model
Power (kW):	90	Weight:	3500 KG
Warranty:	1 Year	Key Selling Points:	Energy Saving
Applicable Industries:	Manufacturing Plant	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	5 Years	Core Components:	Bearing, Motor, Pump, Engine, Screw
Machinery Test Report:	Provided	Machine Color:	As Your Demands
Power(W):	55-110KW	Automatic Grade:	Automatic
After-sales Service Provided:	Video Technical Support	After Warranty Service:	Video Technical Support
Marketing Type:	New Product 2020	Port:	Shanghai

Product Description

Description:

Suitable for:

-- Polymer blending & filling modification

-- Engineering polymer & glass fiber reinforcement

-- Masterbatch, functional parent granula

-- Special material ,powder coating material

-- Reactive extrusion, degassing & devolatilization

Application for the materials in details:

PE/PP/ABS/PC/EVA+CaCO3/Talc/TiO2;

PC+ABS/PA+EPDM/PBT+PET/PP+NBR;

PE/PP/ABS/PC/EVA/PET;

ANTI RETARDANT MASTERBATCH;

DE-COMPOSING MASTERBATCH;

ANTISTATIC MASTERBATCH;

ANTIBACTERIAL MASTERBATCH;

PA/PP/PC/ABS/PBTPOM+GLASS FIBER;

TPR/TPE/TPV/TPU;

PE/PP/EVA/PVC/XLPE;

PA/PU/POM/PMMA/PC;

CPP/CPE/SBS/EPDM/SEBS,FPM,/BR;

COATING MATERIALS

Electric control system:

Common instruments control:

1) Temperature controller,inverter, breaker, contactor, SSR and

control buttons are of foreign famous brand asper customer's option.

2)The PLC control system is adopted to optimize the operations circuit.

3)Control unit like solenoid valve are of Euopean brand.

4)The whole extrusion line has driving & interlock pretect, and troulble &interlock proctec systems.

5)The simulation display is equipped, which can show the running state clearly

and dynamically.

HIMI control:

1) Adopt the improted brand such as Omron and Siements with characters of simpliefied

Circuit and safety.

2) Start/Stop of all the motors can be operated on the touch-screen.

3)The operations status of the line can be displayed dynamically.

4) Dynamic cruve display, input and save of parameters such as rmp, electric current, temp

control and pressure.

5) Presenting the detailed record of warning, document retrieval, and maintenance.

6) Reserve the interface of the bus line, to realize the collections, analyze, save and print data.

Specification

TPR and EVA Co-rotating Parallel Twin-screw Pelletizing Plant with Double-screw Design 0

TPR and EVA Co-rotating Parallel Twin-screw Pelletizing Plant with Double-screw Design 1

Packaging & Shipping

TPR and EVA Pelletizing production line/peletizadora de plastico

Workshop:

TPR and EVA Pelletizing production line/peletizadora de plastico TPR and EVA Co-rotating Parallel Twin-screw Pelletizing Plant with Double-screw Design 9

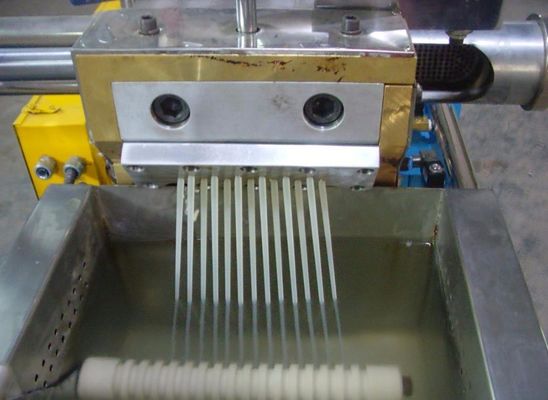

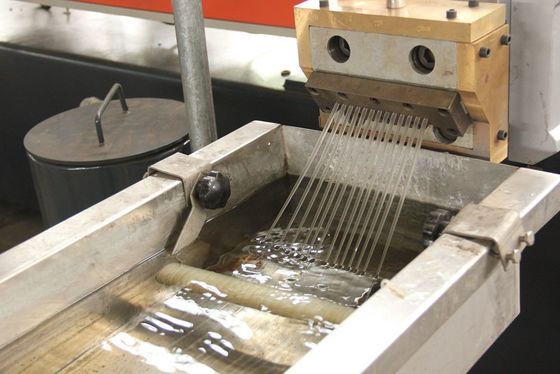

Machine details:

TPR and EVA Pelletizing production line/peletizadora de plastico
