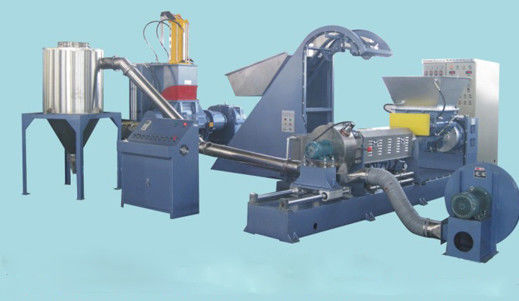

SBR/EPDM Rubber Masterbatch Extruder Line for Long Service Life and Field Maintenance

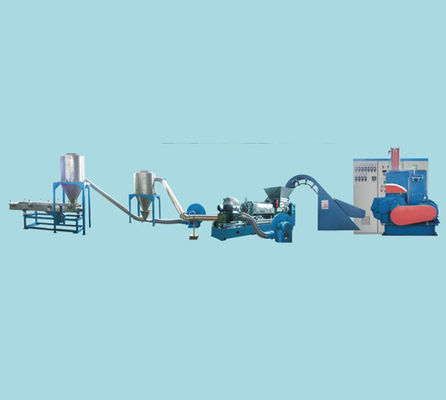

1.The production line combines materials mixing,  feeding- extrusion granulation, cyclone separator and vibrating screen as a whole production line, automated continuous operation, with high effective production.

2.Compact structure, occupies small space and can be installed as a line or as a circle.
3.Sub-loop temperature control process, dispersion mixer,extrusion machine have their separate and independent heating or cooling system, control their temperature according to actual requirements.

4.Feeding machine adopt double screw propeller extrusion feeder, with the feature of strong material feeding, especially suitable for extrusion and granulation of mixed compound directly from kneader or two roll mill.
5.Barrel screw of extruder use 38CrMoAlA quality alloy steel, nitriding treatment, high hardness, wear resistance to corrosion.
6.Extruder machine head adopts special clamp-clip structure developed specially for SBR/EPDM based Sulfur masterbatc granulation,screen change is not needed, easy to clean color,durable use,no material leakage

7.Electronic control system uses advanced PLC control technology, and use inveter to control speed of feeding, extrusion, pelletizing and other multi-process machine according to the actual requirements.

8.And the production line adopts interlock chain protection system, sound and light alarm devices, improving the reliability and safe operation.

 9.Granules pelletized by this line are with the features of beautiful appearance,well distributed,fine texture.

Production capacity of the line ranging from 150~800kgs/h,  please advise your capacity demand,we will choose the suitable production line to meet your requirement. Good quality machines with best price!
