Product Details:
|
| Mixer Type: | Agitator | Max. Loading Capacity: | 3000L |
|---|---|---|---|
| Condition: | New | Application: | Viscous Fluid |
| Additional Capabilities: | Milling | Voltage: | 220V/380v/415V/440V |
| Dimension(L*W*H): | Custom Made | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Power: | 0.75KW~45KW |
| Port: | Shanghai |

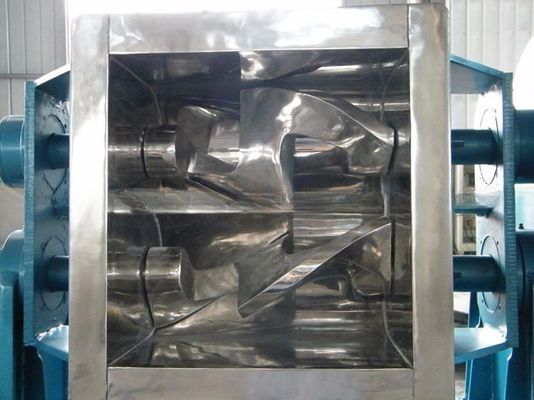

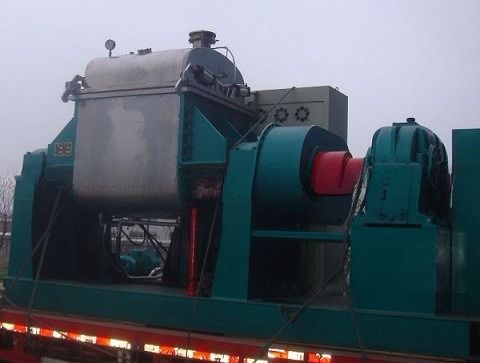

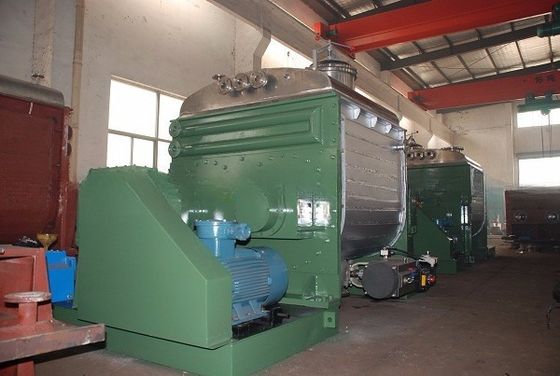

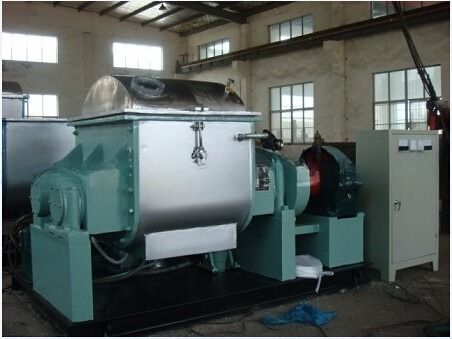

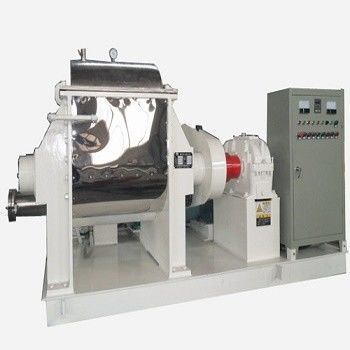

All the Sigma Machine we make are heavy duty structure.The machines are widely used for: plastic, rubber, silicon, soap,paint, printing ink,basoid, carbon, food stuff, medicine etc, Mixing room and agitating rotor are all made by stainless steel, the jacket of mixing room can be designed into electric oil heating,steam heating or water cooling. Discharge ways include hydraulic tilt, screw extruder and bottom valve discharge etc.
Model | Total Volume(L) | Working Volume(L) | Motor Power (KW) | Cooling/heating |
NH-0.5 | 0.5 | 0.2 | 0.55 | Steam/ water /oil |
NH-1 | 1 | 0.5 | 0.75 | Steam/ water /oil |
NH-2 | 2 | 1 | 1.1 | Steam/ water /oil |
NH - 50 | 50 | 30 |
2.2 ~7.5 | Steam/water /oil |
NH - 100 | 100 | 60 |
3 ~ 11 | Steam/ water /oil |
NH - 200 | 200 | 120 |
5.5 ~15 | Steam/ water /oil |
NH - 300 | 300 | 180 |
7.5 ~ 22 | Steam/ water /oil |
NH - 500 | 500 | 300 |
11 ~37 | Steam/water/oil |
NH - 1000 | 1000 | 600 |
18.5 ~75 | Steam/water /oil |
NH - 1500 | 1500 | 900 |
22~132 | Steam/ water/oil |
NH - 2000 | 2000 | 1200 |
37~160 | Steam/ water/oil |
NH - 3000 | 3000 | 1800 |
55~185 | Steam/water/oil |
NH - 4000 | 4000 | 2400 |
75~220 | Steam/water/oil |
NH - 5000 | 5000 | 3000 |
90~250 | Steam/water/oil |
NH - 6000 | 6000 | 3600 |
132~250 | Steam/water/oil |
