Product Details:
|
| Condition: | New | Mixing Capacity(L): | 600 L |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 5 Years | Core Components: | PLC, Engine, Bearing, Motor, Gear |
| Power (kW): | 45 KW | Compressed Air Pressure(MPa): | 0.8 MPa |
| Voltage: | 380V 220V | Warranty: | 1 Year |
| Key Selling Points: | Energy Saving | Weight (KG): | 12000 KG |
| Showroom Location: | None | Applicable Industries: | Manufacturing Plant |
| Kneader: | Double Blade Type Sigma Kneader | Mixer: | Z Blade Type Sigma Mixer |
| Power(W): | 18.5-75KW | After-sales Service Provided: | Video Technical Support |
| After Warranty Service: | Video Technical Support | Marketing Type: | New Product 2020 |
| Port: | Shanghai |

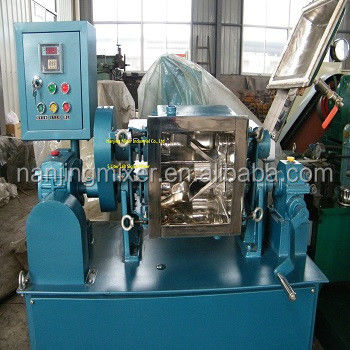

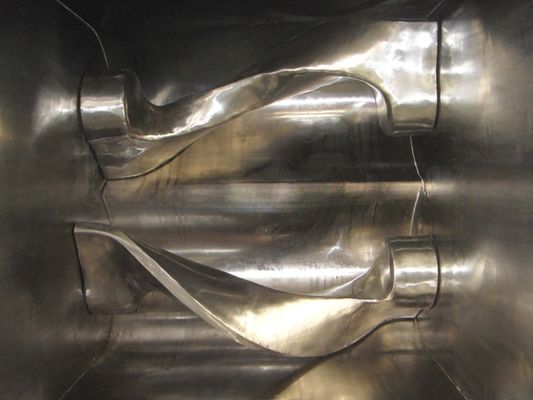

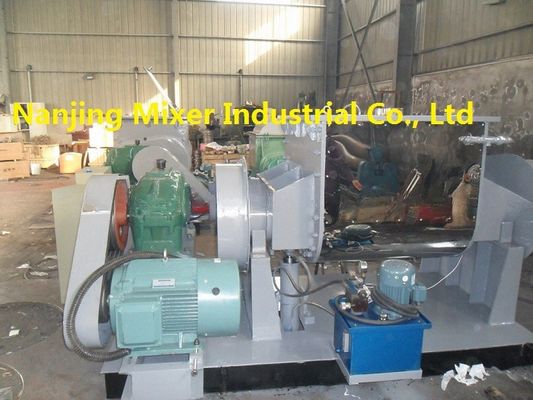

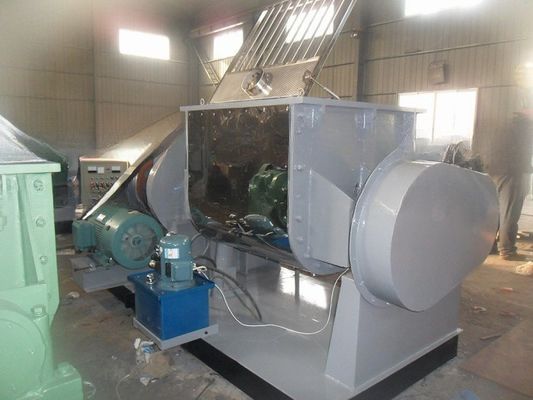

Sigma Mixer/kneader for BMC with Z-shaped blades:
This kind of Sigma Mixer (Sigma Kneader) with Z-shaped blades are specially developed for BMC material mixing,achieving perfect BMC mixing effect compared with normal sigma blade kneader.
Standard Sigma Kneader/Mixer:
| Model | Total Volume(L) | Working Volume(L) | Motor Power (KW) | Discharge way | Heating mode |
| NH - 50 | 50 | 30 | 2.2 ~ 4 | Hydraulic tilt | Steam/hot water |
| NH - 100 | 100 | 60 | 3 ~ 5.5 | Hydraulic tilt | Steam/hot water |
| NH - 200 | 200 | 120 | 5.5 ~ 7.5 | Hydraulic tilt | Steam/hot water |
| NH - 300 | 300 | 180 | 7.5 ~ 11 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 500 | 500 | 300 | 11 ~ 18.5 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 1000 | 1000 | 600 | 18.5 ~ 30 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 1500 | 1500 | 900 | 22~37 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 2000 | 2000 | 1200 | 37~55 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 3000 | 3000 | 1800 | 55~90 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 4000 | 4000 | 2400 | 75~110 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 5000 | 5000 | 3000 | 90~132 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 6000 | 6000 | 3600 | 132~160 | Hydraulic tilt/bottom drop | Steam/hot water |
Vacuum Sigma Kneader Mixer:
| Model | Total Volume(L) | Working Volume(L) | Motor Power (KW) | Discharge way | Heating mode |
| NHZ - 50 | 50 | 30 | 4 ~ 5.5 | Hydraulic tilt | Electric/steam |
| NHZ - 100 | 100 | 60 | 5.5 ~ 7.5 | Hydraulic tilt | Electric/steam |
| NHZ - 200 | 200 | 120 | 7.5 ~ 11 | Hydraulic tilt | Electric/steam |
| NHZ - 300 | 300 | 180 | 11 ~ 15 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 500 | 500 | 300 | 15 ~ 30 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 1000 | 1000 | 600 | 37 ~ 55 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 1500 | 1500 | 900 | 55 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 2000 | 2000 | 1200 | 75 ~ 90 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 3000 | 3000 | 1800 | 90 ~ 110 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 4000 | 4000 | 2400 | 132 ~ 160 | Hydraulic tilt/bottom drop | Electric/steam |
