Product Details:
|
| Mixer Type: | Agitator | Max. Loading Capacity: | 300L |
|---|---|---|---|
| Condition: | New | Product Type: | Other |
| Application: | Viscous Fluid | Additional Capabilities: | Other |
| Voltage: | 380V | Dimension(L*W*H): | According To The Type |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Kneader: | Double Blade Type Sigma Kneader | Mixer: | Z Blade Type Sigma Mixer |
| Power: | 18.5 KW | Port: | Shanghai |

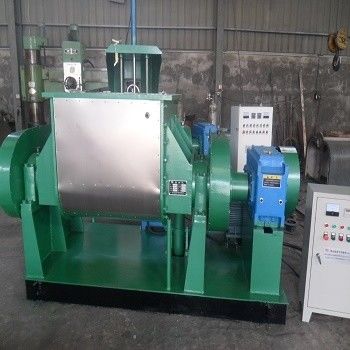

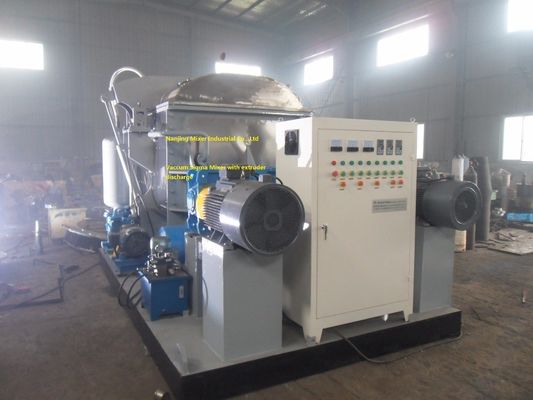

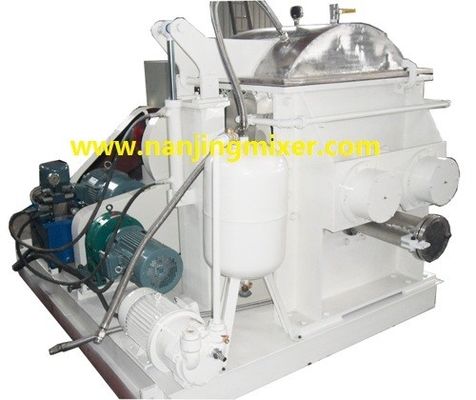

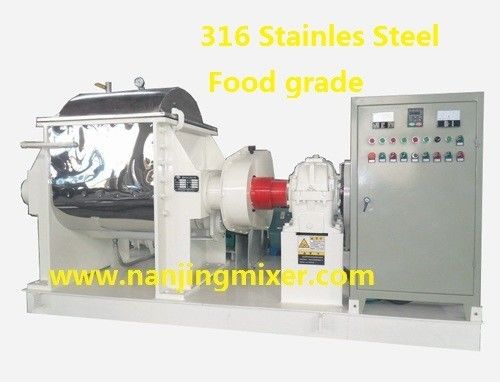

Sigma Mixer Extruder/Sigma Kneader Extruder/Z Blade Extruder
All the Sigma Kneader / Mixer& Z Blade Kneader / Z Blade Mixer we make are heavy duty structure.
The machines are widely used for mixing in the fields of: chemical, rubber, plastic,silicon, gum,tooth paste,dough,hot melt adhesive,soap,paint, printing ink, carbon, food stuff, medicine,BMC,CMC,ceramic paste,starch,etc, Mixing room and agitating blades are all made by stainless steel, the jacket of mixing room can be designed for electric oil heating,steam heating or water cooling. Discharge ways include hydraulic tilt, screw extruder and bottom valve discharge etc.
Model | Total Volume(L) | Working Volume(L) | Motor Power (KW) | Cooling/heating |
NHZ-0.5 | 0.5 | 0.2 | 0.55 | water /steam/electric/oil |
NHZ-1 | 1 | 0.5 | 0.75 | water /steam/electric/oil |
NHZ-2 | 2 | 1 | 1.1 | water /steam/electric/oil |
NHZ- 50 | 50 | 30 | 2.2 ~7.5 | water /steam/electric/oil |
NHZ - 100 | 100 | 60 | 3 ~ 11 | water /steam/electric/oil |
NHZ - 200 | 200 | 120 | 5.5 ~15 | water /steam/electric/oil |
NHZ- 300 | 300 | 180 | 7.5 ~ 22 | water /steam/electric/oil |
NHZ - 500 | 500 | 300 | 11 ~37 | water /steam/electric/oil |
NHZ - 1000 | 1000 | 600 | 18.5 ~75 | water /steam/electric/oil |
NHZ - 1500 | 1500 | 900 | 22~132 | water /steam/electric/oil |
NHZ - 2000 | 2000 | 1200 | 37~160 | water /steam/electric/oil |
NHZ - 3000 | 3000 | 1800 | 55~185 | water /steam/electric/oil |
NHZ - 4000 | 4000 | 2400 | 75~220 | water /steam/electric/oil |
NHZ - 5000 | 5000 | 3000 | 90~250 | water /steam/electric/oil |
NHZ - 6000 | 6000 | 3600 | 132~250 | water /steam/electric/o |
