Product Details:
|
| Mixer Type: | Screw | Barrel Volume (L): | 500 L |
|---|---|---|---|
| Material Processed: | Plastics, Food | Max. Loading Volume (L): | 300 L |
| Max. Loading Capacity: | 300L | Weight (KG): | 6000 KG |
| Material: | SUS304, SUS316 | Condition: | New |
| Product Type: | Other | Application: | Viscous Fluid |
| Additional Capabilities: | Other | Voltage: | 380V |
| Dimension(L*W*H): | According To The Type | Power (kW): | 45 KW |
| Warranty: | 1 Year | Key Selling Points: | Energy Saving |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 5 Years |
| Core Components: | Motor, Gear, Pressure Vessel, Engine | Kneader: | Double Blade Type Sigma Kneader |
| Mixer: | Z Blade Type Sigma Mixer | Power(W): | 18.5 KW |
| After Warranty Service: | Video Technical Support |

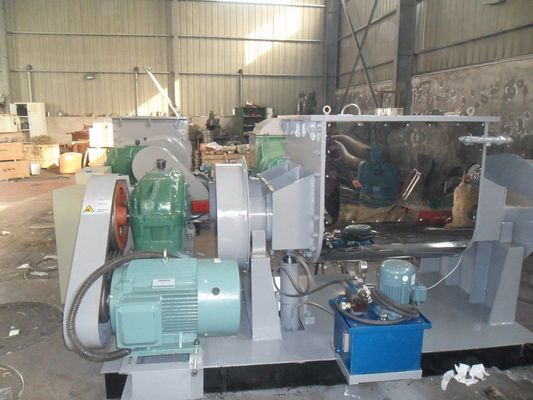

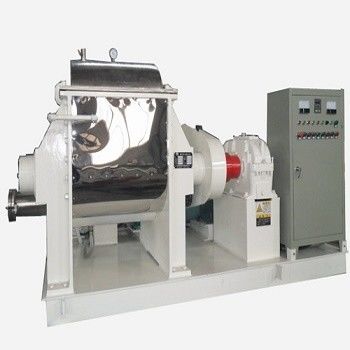

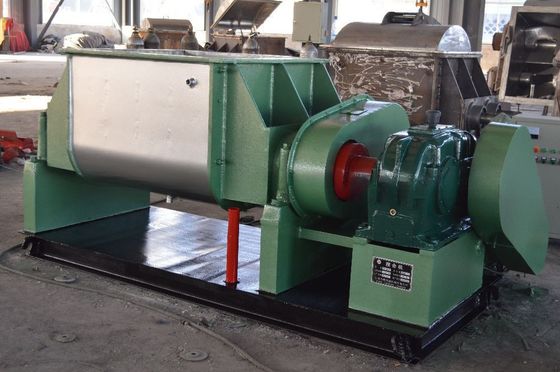

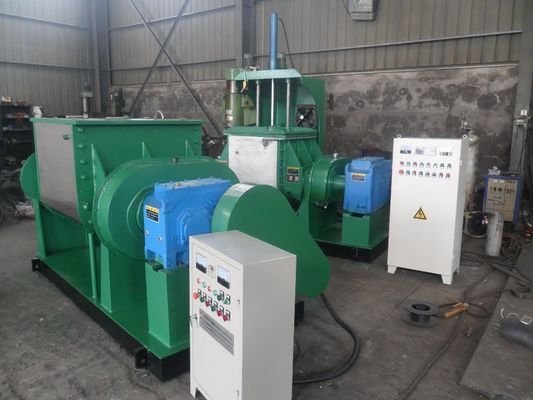

cmc double z blade sigma kneader mixer

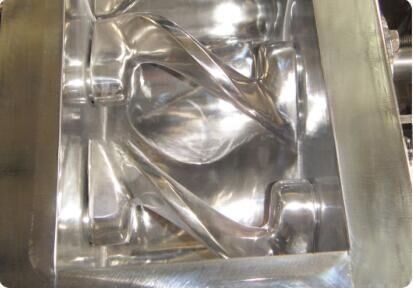

Sigma Kneader/Sigma Mixer is widely used for: plastic, rubber, silicone,CMC,BMC, soap,paint, printing ink, basoid, carbon, food stuff,etc, Mixing room and agitating rotor are all made by stainless steel, The jacket of mixing room can be designed into electric heating, steam heating, steam heating or water cooling. Discharge ways include hydraulic tilt,, screw extruder and botton valve discharge etc.
Standard Sigma Kneader/Mixer:
| Model | Total Volume(L) | Working Volume(L) | Motor Power (KW) | Discharge way | Heating mode |
| NH - 50 | 50 | 30 | 2.2 ~ 4 | Hydraulic tilt | Steam/hot water |
| NH - 100 | 100 | 60 | 3 ~ 5.5 | Hydraulic tilt | Steam/hot water |
| NH - 200 | 200 | 120 | 5.5 ~ 7.5 | Hydraulic tilt | Steam/hot water |
| NH - 300 | 300 | 180 | 7.5 ~ 11 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 500 | 500 | 300 | 11 ~ 18.5 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 1000 | 1000 | 600 | 18.5 ~ 30 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 1500 | 1500 | 900 | 22~37 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 2000 | 2000 | 1200 | 37~55 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 3000 | 3000 | 1800 | 55~90 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 4000 | 4000 | 2400 | 75~110 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 5000 | 5000 | 3000 | 90~132 | Hydraulic tilt/bottom drop | Steam/hot water |
| NH - 6000 | 6000 | 3600 | 132~160 | Hydraulic tilt/bottom drop | Steam/hot water |
Vacuum Sigma Kneader Mixer:
| Model | Total Volume(L) | Working Volume(L) | Motor Power (KW) | Discharge way | Heating mode |
| NHZ - 50 | 50 | 30 | 4 ~ 5.5 | Hydraulic tilt | Electric/steam |
| NHZ - 100 | 100 | 60 | 5.5 ~ 7.5 | Hydraulic tilt | Electric/steam |
| NHZ - 200 | 200 | 120 | 7.5 ~ 11 | Hydraulic tilt | Electric/steam |
| NHZ - 300 | 300 | 180 | 11 ~ 15 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 500 | 500 | 300 | 15 ~ 30 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 1000 | 1000 | 600 | 37 ~ 55 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 1500 | 1500 | 900 | 55 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 2000 | 2000 | 1200 | 75 ~ 90 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 3000 | 3000 | 1800 | 90 ~ 110 | Hydraulic tilt/bottom drop | Electric/steam |
| NHZ - 4000 | 4000 | 2400 | 132 ~ 160 | Hydraulic tilt/bottom drop | Electric/steam |
